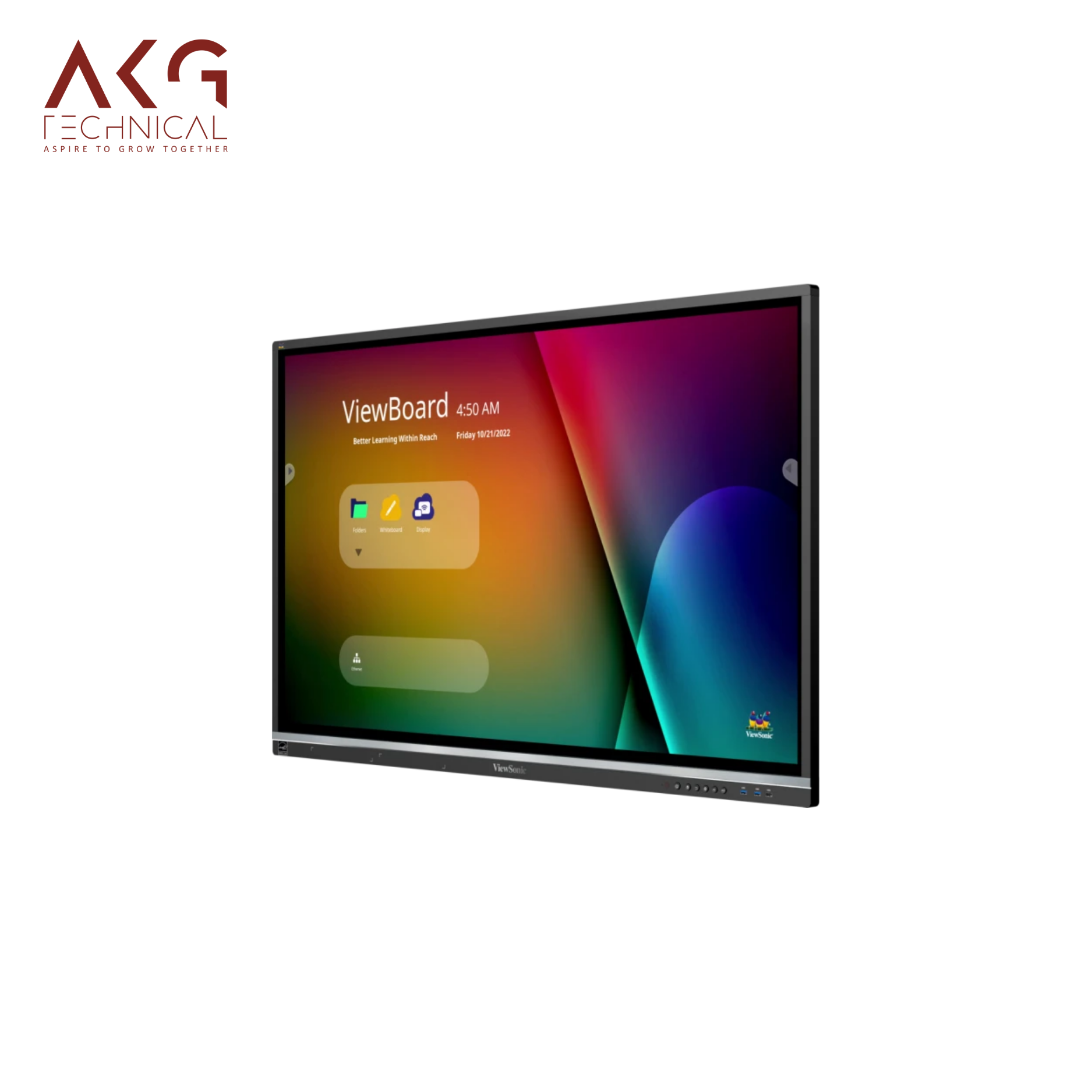

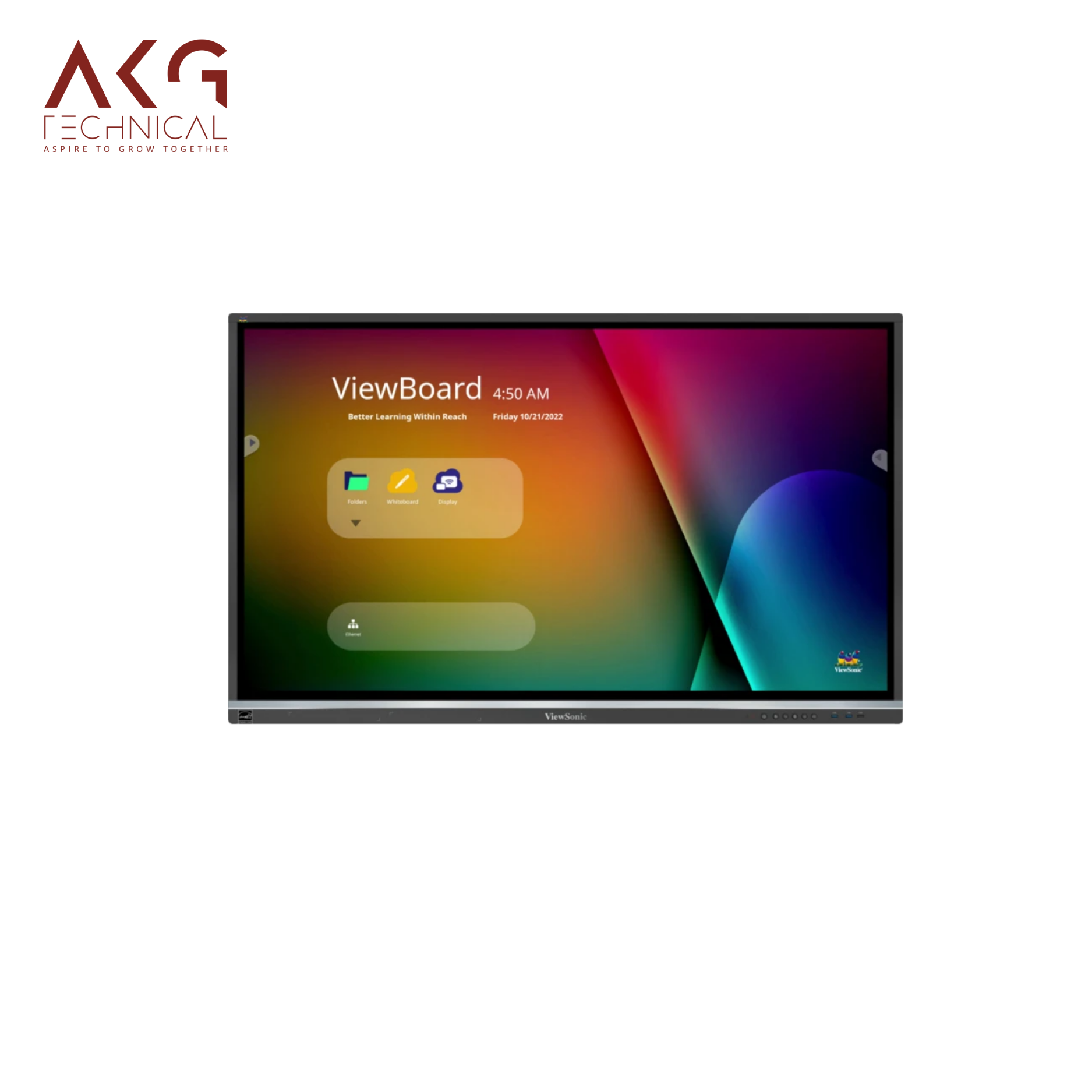

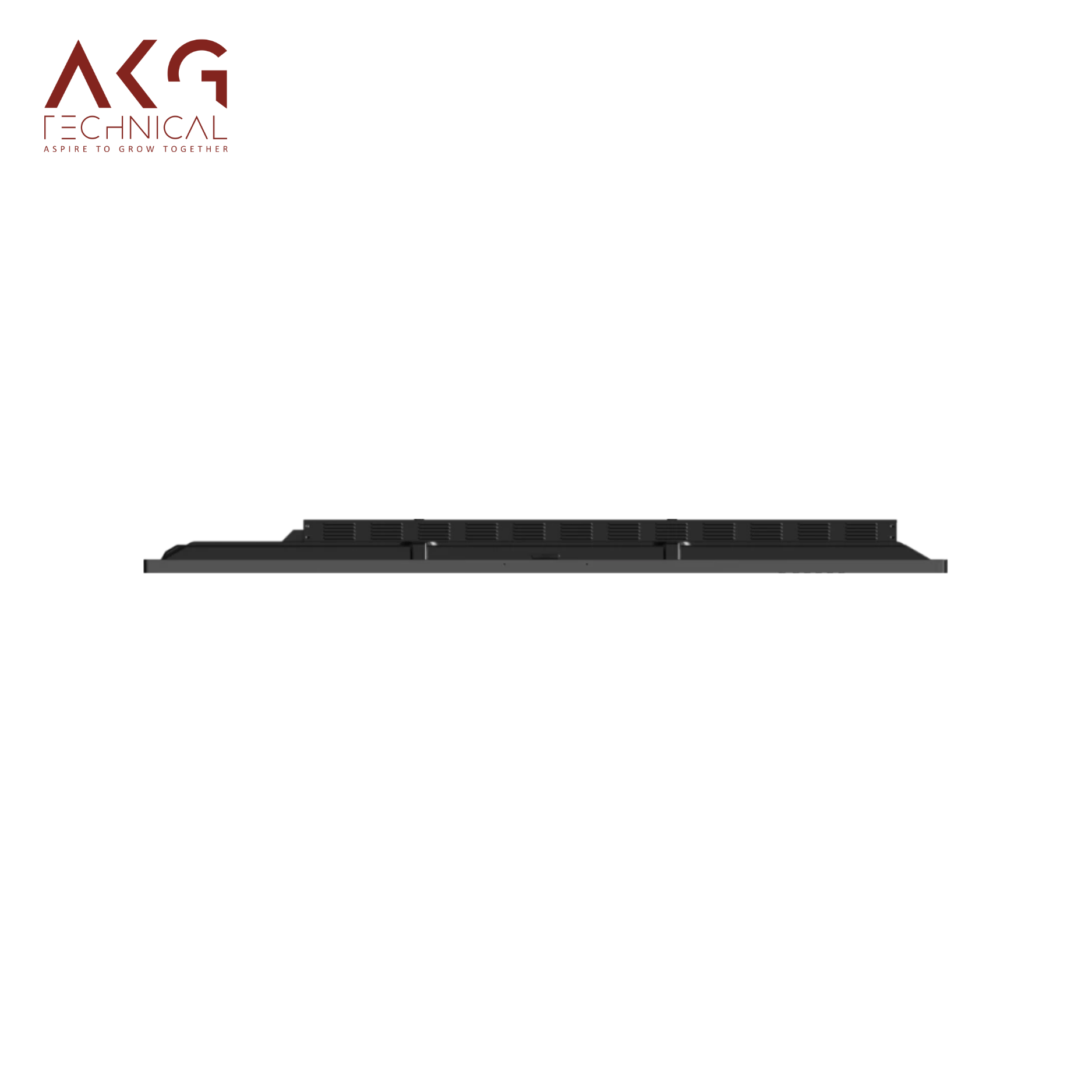

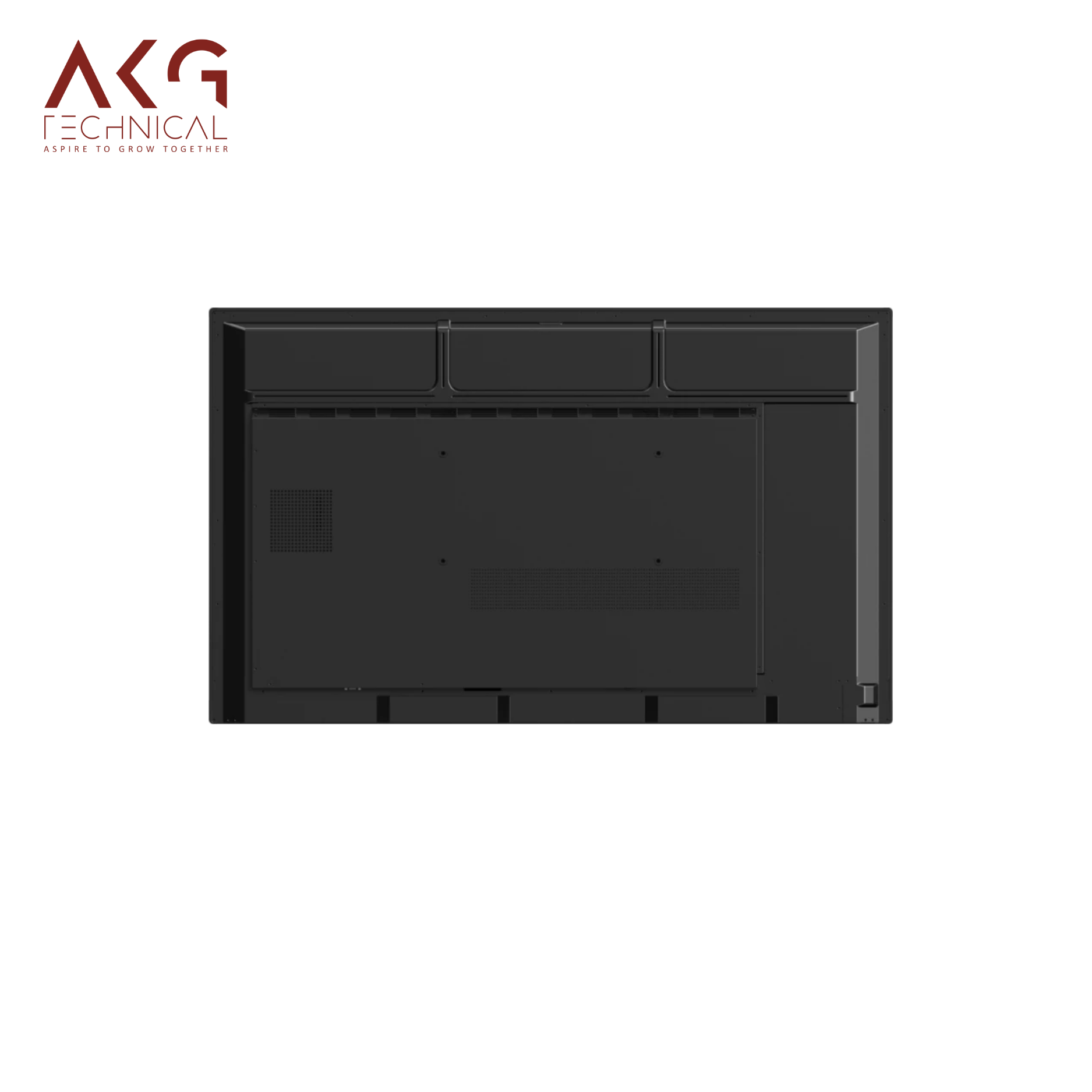

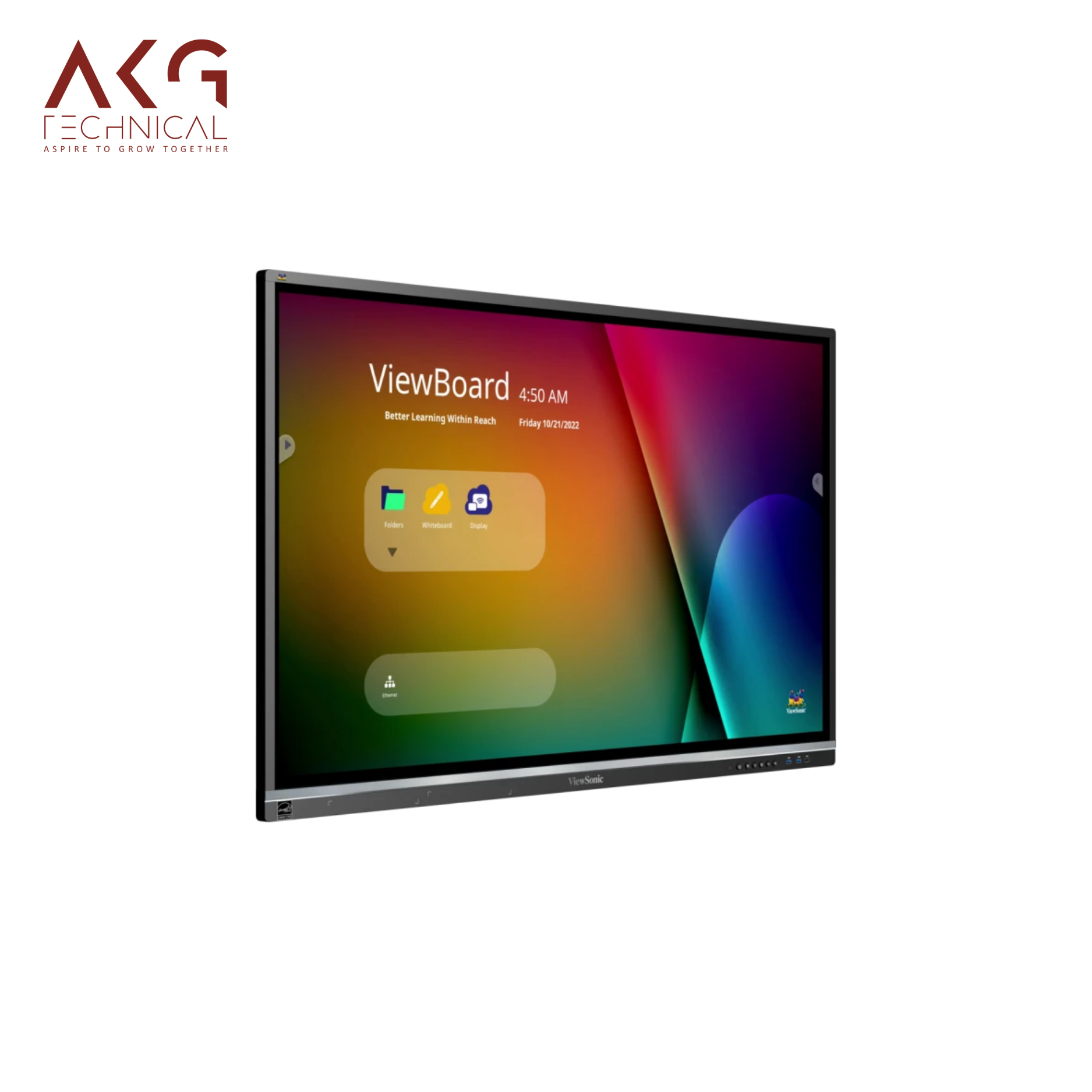

ViewSonic ViewBoard, 55″ Interactive Flat Panel, Model No. IFP5550-5
₹295000.00
This device has 40 points of the touch Ultra Fine Touch Technology and is said to offer an experience close to writing on paper.
About this item
- Ultra Fine Touch Technology:- Ultra Fine Touch Technology allows users to experience writing with a pen on paper by offering up to 40-point touch capability, thus making the experience one of the finest.
- MyViewBoard Whiteboard Software:– Provides students with basic, engaging classroom tools for lessons that include interactions.
- Screen Sharin-g Options:- USB-C, myViewBoard Display, and ViewBoard Cast that supports Airplay and Chromecast allows for easy sharing of content wirelessly.
- Intuitive Remote Device Control and Multimedia Broadcast:- Control devices even when you are not present through myViewBoard Manager allowing for broadcasting of multimedia seamlessly.
- Powered by Android 11 OS:- It is powered by a chipset comprising 8 cores which helps in optimizing both efficiency and security while being upgradeable to Android 13.
This device has 40 points of the touch Ultra Fine Touch Technology and is said to offer an experience close to writing on paper. This means that writing is effortless which is perfect for interactive lessons and creative activities in the classroom. In addition, this is complemented by my View Board Whiteboard which provides stands for perfect classroom tools and aids to help make annotations as well as collaboration flow smoothly. Also, for exchanging information, the device enables display mirroring through USB-C allowing for a physical connection, or wirelessly through my View Board Display and my View Board Cast which supports Airplay and Chromecast. This allows the teachers and students to easily show their screens and necessary content to one another, therefore aiding collaboration which is real time. The my View Board Manager makes controlling remote devices and broadcasting multimedia easy, providing managing and control of connected devices from one location. This makes the installation and upkeep of electronic display screens in educational settings a lot easier. The Octa core CPU guarantees maximum efficiency and tight security. Our devices have been designed to ensure a secure and seamless experience while running on the Android 11 OS. And further, it can be upgraded to Android 13 so that our users can benefit from the frequent updates that come with it, making the device relevant through the changing educational features.
| Display | Panel Size: 55" Panel Type: TFT LCD Module with DLED Backlight. IPS Display Area (mm): 1209.6(H) x 680.4 (V) Aspect Ratio:- 16:9 Resolution:- UHD 3840×2160 Colors:- 1.07B colors (8bit+FRC) Brightness:- 450 nits (typ.) Contrast Ratio:- 1200:1 (typ.) 5000:1 (DCR) Response Time:- 8ms Viewing Angles:- H = 178, V = 178 typ. Backlight Life:- 50,000 hours (Min) Surface Treatment:- Hardness: 9H, Anti-glare coating Bezel:- Slim Orientation:- Landscape |
|---|---|
| Platform | Processor:- ARM Cortex-A73*4 + Cortex-A53*4 RAM:- 4GB Storage:- 32GB |
| Touch | Type/ Tech:- Ultra Fine Touch Techology (IR Recognition) Touch Resolution:- 32767×32767 Touch Point: Windows:- 40 points of touch, Android : 20 points of touch |
| INPUT | HDMI:- 2.0 x 3 (3840×2160 @60Hz, HDCP2.2, HDMI1 with CEC/ARC) RS232:- x1 OPS:- x1 WiFi:- x 1 module slot |
| OUTPUT | HDMI:- 2.0 x 3 (3840×2160 @60Hz, HDCP2.2, HDMI1 with CEC/ARC) RS232:- x1 OPS:- x1 WiFi:- x 1 module slot |
| LAN | RJ45: x2 |
| USB | Type A:- 2.0 x 2 3.0 x 4 Type B:- x2, for touch Type C:- x1 ( DP 1.2, USB2.0, PD65W, Ethernet 100M) |
| SPEAKERS | 12W x 2 + 16W x 1 subwoofer |
| Top Camera Plate | YES |
| Embedded OS | Android 11 (Upgradable to Android 13) |
| Bundle Software | Basic Annotation Software:- myViewBoard Pro Annotation Software:- Pro Annotation Software: myViewBoard for Windows (Embedded in Windows Slot-in PC) Wireless Presentation:- vCast/myViewBoard Display App |
| Special Features | All-in-one USB port:- “SmartPort™ USB” to all channels. Simple LAN sharing between IFP and slot-in device:- Simple LAN sharing between IFP and slot-in device Light Sensor:- Yes |
| Power | Voltage:- 100-240VAC +/- 10% Wide Range Consumption:- 89W(typ.), 0.5W (off) |
| ERGONOMICS | Wall Mount (VESA® ): 400mm x 200 mm |
| OPERATING CONDITIONS | Temperature (º C): 0°C to 40°C Humidity: 10% ~ 90% RH non-condensing |
| DIMENSIONS (W x H x D) | Physical (inch / mm):- 49.9 x 30.4 x 3.3 in / 1268 x 773 x 85 mm Packaging (inch / mm):- 56.2 x 34.6 x 8.7 in / 1428 x 878 x 220 mm |
| WEIGHT | Net (lb / kg): 58.2lb/26.4kg Gross (lb / kg): 78.3lb/35.5kg |
| REGULATIONS | cTUVus, FCC/ICES003, Energy Star 8.0, EMC/CE, CB/LVD, GOST-R/EAC, UkrSEPRO, EPEAT, Mexico NOM , Mexico Energy, UKCA, UK-EEL, BSMI, BIS, LBL( Low Blue Light Certification), Flicker Free, Green BOM, RoHS, ErP-Eco, REACH, SCIP, WEEE, TPCH , Packing waste, CA65, PAIA |
| PACKAGE CONTENTS | 1. Power cord 2. Remote control with AAA battery 3. Touch USB cable 4. Touch pen x 2 (VB-PEN-009) 5. Quick Start Guide + Compliance statement 6. RS232 adapter 7. Clamp x 5 8. Camera Plate 9. Screw x 8 10. HDMI cable |
| Compatible Slot-in PC | VPC2-O series • VPC2-O-B series • VPC25-W33-O1-1B • VPC27-W53-O1-1B • VPC12-WPO-17 • VPC12-WPO-18 |
