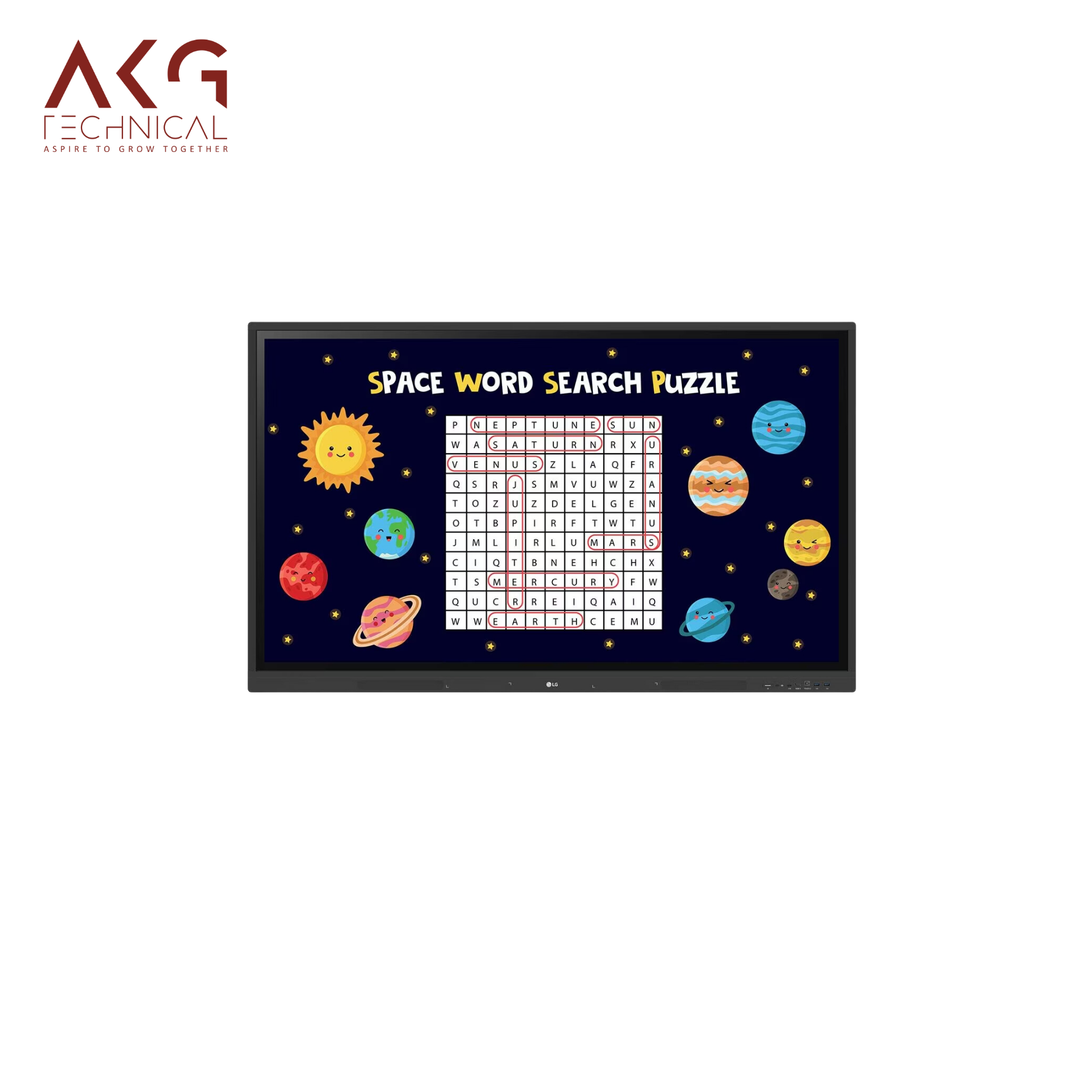

LG CreateBoard , 65″ Interactive Flat Panel, Model No. 65TR3DK
₹400000.00
The LG Create Board includes an array of educational templates and teaching aids such as: rulers, tables, sticky notes that keeps the students fully engaged and lessons well organized.
About this item
- Teaching Templates:- With LG’s CreateBoard, students can use rulers, tables, and sticky notes directly in order to encourage active and seamless learning.
- Multi-Touch:- Up to forty contacts at once can be detected and it makes engaging students through touch experience better making them focus more.
- Easy Import/Export:- It is possible to save and import resources directly from google drive, OneDrive or USB drives so there is a reduction in the hassle of file management.
- LG ConnectedCare DMS:- It is a cloud based solution that provides control, monitoring and management services of the CreateBoard that has been installed in specific education settings.
- Problem Management:- Using LG ConnectedCare DMS, they can no longer visit the classroom but instead professionals who are qualified to manage these devices can assist in the class virtually.
- Remote-Control Services:- Power on/off, schedule, brightness, and lock screen are all possible which allows sharing of content like images, videos and live streaming remotely.
- Broadcasting:- In cases of fire or natural disasters, the system will send out emergency alarm reminders for safety purposes.
- Wireless ScreenShare:- When installed, LG CreateBoard Share app enables one to share content in real time on nine different screens.
- Bluetooth Connectivity:- Connects wirelessly with a range of devices such as speakers, keyboard and mouse.
- C-Type Connection:- Replaces the need for multiple cables by allowing device charging and data transfer with a single cable.
- QR Login for Easy Cloud Access:- This way they do not have to go through many procedures in order to do device verification and sign up for the app thus reducing preparation time.
The LG Create Board includes an array of educational templates and teaching aids such as: rulers, tables, sticky notes that keeps the students fully engaged and lessons well organized. The LG Create Board can support multi-touch feature with 40 points being detected at the same time. This is where the hand impression comes to life, thereby allowing students to adapt to the technology and context view effortlessly. It encourages the learners to stretch their focus to the maximum level and be seen as being involved more which makes the process interesting and efficient. With easy import/export steps, LG Create Board facilitates resource sharing. Resources can be directly saved onto Google Drive or OneDrive, while files can also be imported using USB drives enabling teachers to share information across devices and platforms easily. Due to these characteristics, a learner resource can never be lost. LG Connected Care DMS is a cloud infrastructure that empowers remote viewing, setting and management of LG Create Board that were installed in other houses such as schools or specialized institutions. With this solution in place, IT managers can oversee the status of the devices, apply updates, and resolve issues without the need for trips to the institutions. Maintenance in schools and universities becomes easier with the help of these enhancements. The da Vinci DMS solution is dependent on remote maintenance which enables fewer safety risks than local maintenance.
| PANEL | Screen Size (Inch):-65 Native Resolution:- 3840 x 2160 (UHD) Color Gamut:- NTSC 72% Surface Treatment (Haze):- Haze 25% Panel Technology:- IPS Refresh Rate:- 60Hz Viewing Angle (H x V):- 178º x 178º Operation Hours (Hours/Day):- 16/7 Back Light Type:- Direct Brightness:- 440 nits Color Depth (Number of Colors):- 16.7 Million colors Portait / Landscape:- NO / YES Aspect Ratio:- 16:9 Dynamic CR:- 5,000:1 Response Time:- 8ms (G to G) |
|---|---|
| CONNECTIVITY | HDMI In:- YES (3ea) RGB In:- YES IR In:- NO Audio Out:- YES RJ45(LAN) Out:- YES HDMI In (HDCP Ver.):- 2.2 Audio In:- YES USB In:- USB3.0 Type A (4ea), USB2.0 Type A (1ea), USB Type C (1ea) Touch USB:- USB2.0 Type B (2ea) DP In:- NO RS232C In:- YES HDMI Out:- YES External Speaker Out:- NO DVI-D In:- NO RJ45(LAN) In:- YES (1ea) DP Out:- NO RS232C Out:- NO |
| MECHANICAL SPECIFICATION | Bezel Color:- Black Monitor Dimensions (W x H x D):- 1488.4 × 896.6 × 87.2mm Bezel Width:- T/R/L/B : 15/15/15/44mm Handle:- YES Weight (Head):- 35.0Kg VESA Standard Mount Interface:- 600 x 400 mm Packed Weight:- 44.7Kg Carton Dimensions (W x H x D):- 1628 × 1005 × 208mm |
| FEATURE - HARDWARE | Internal Memory (eMMC):- 32GB Power Indicator:- YES Setting Data Cloning:- NO Wake on LAN:- YES PIP:- YES Crestron Connected:- NO Network Ready:- NO PBP:- YES (2PBP) Smart Energy Saving:- YES HDMI-CEC:- NO Screen Share:- YES PM mode:- NO |
| ENVIRONMENT CONDITIONS | Operation Temperature:- 0 °C to 40 °C Operation Humidity:- 10 % to 90 % |
| POWER | Power Supply:- AC 100-240V~, 50/60Hz Power Type:- Built-in Power |
| POWER CONSUMPTION | BTU (British Thermal Unit):- 751 BTU/Hr(Typ.), 1433 BTU/Hr(Max.) Typ.:- 220W DPM:- 0.5W Power off:- 0.5W Max.:- 420W |
| SOUND | Speaker (Built-in):- YES (15W x 2) |
| CERTIFICATION | Safety:- CB / NRTL EMC:- FCC Class "A" / CE ERP / Energy Star:- YES / YES |
| OPS COMPATIBILITY | OPS Type compatible:- YES (Slot) OPS Power Built-in:- YES |
| SOFTWARE COMPATIBILITY | Connected Care:- YES |
| LANGUAGE | OSD:- English, Denmark, Finnish, German, Korean, Norwegian, Polski, Portugues(Europe), Portugues(Brazil), Romanian, Spanish, Swedish, Hungarian, Thai |
| ACCESSORY | Basic:- Power Cord 3M*1, USB Cable (Type A-Type B) 5M*1, HDMI Cable 3M*1, Writing Pen*2pcs, User Manual, QSG, Carton Box, Remote Controller(include battery 2ea), Wifi module Optional:- Wall Mount(WM-L000S), Floor Stand(ST-000F, ST-860F) |
| SPECIAL FEATURE | Conformal Coating (Power Board):- YES |
| DEDICATED FEATURE - TOUCH | Available Object Size for Touch:- Ø2 mm ↑ Protection Glass Thickness:- 3mm (Anti-Glare) Response Time ('Paint' app on Windows 10 PC):- 5ms ↓ Protection Glass Transmission:- 0.88 Accuracy (Typ.):- ±1mm Operating System Support:- Windows 7/8/10/Linux/Mac/Android (Linux/Mac Support one point touch) Interface:- USB2.0 Multi Touch Point:- Max. 40 Points(Windows), Max. 32 Points(Android) |
| DEDICATED FEATURE - CREATE BOARD | CPU:- Quad core A55 Wi-Fi:- 802.11a/b/g/n/ac/ax (WiFi 6) GPU:- Mail G52 Multicore 2 LAN:- Gigabit LAN Memory(RAM):- 4GB Bluetooth:- Bluetooth 5.0 Storage:- 32GB OS ver. (Android):- Android 11 |
