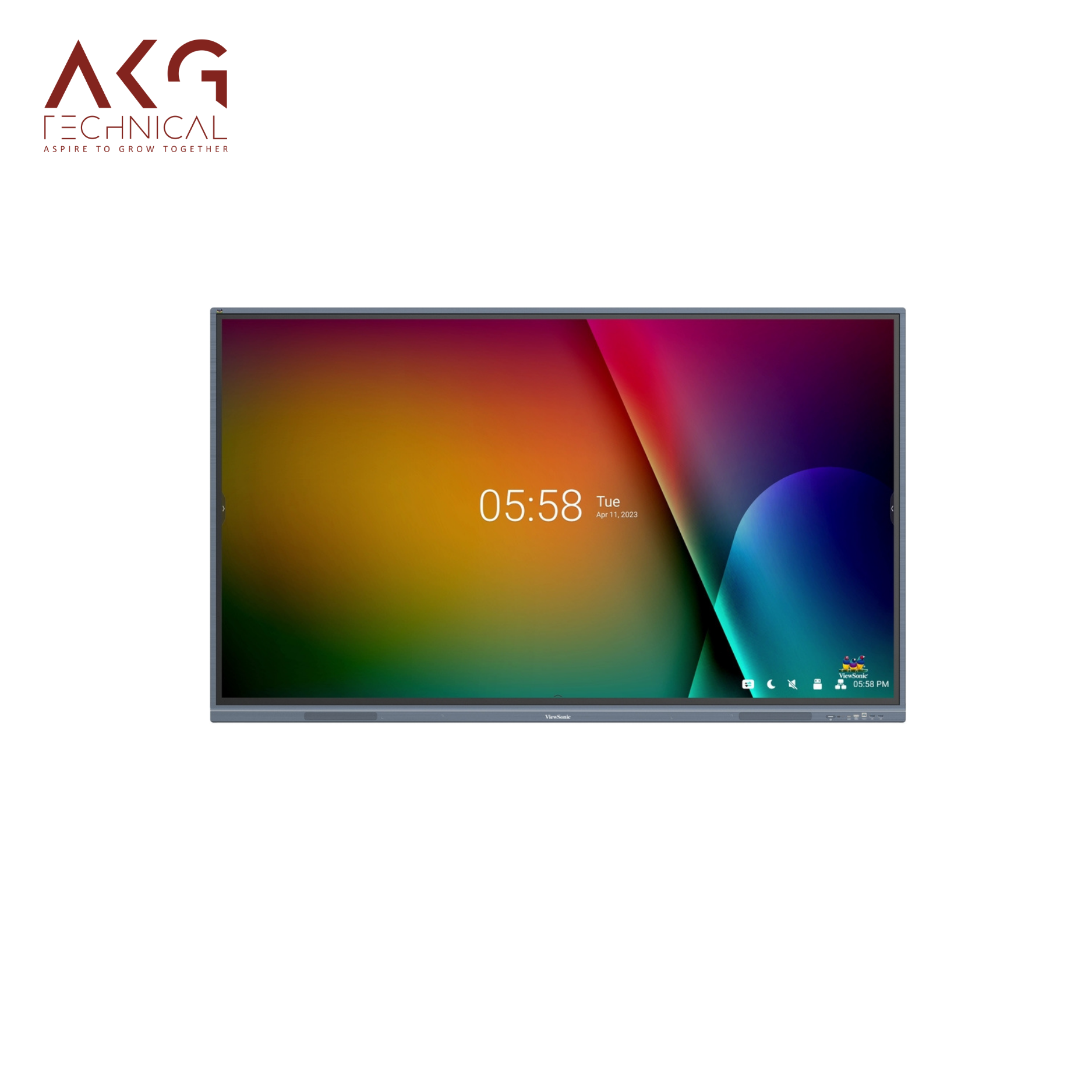

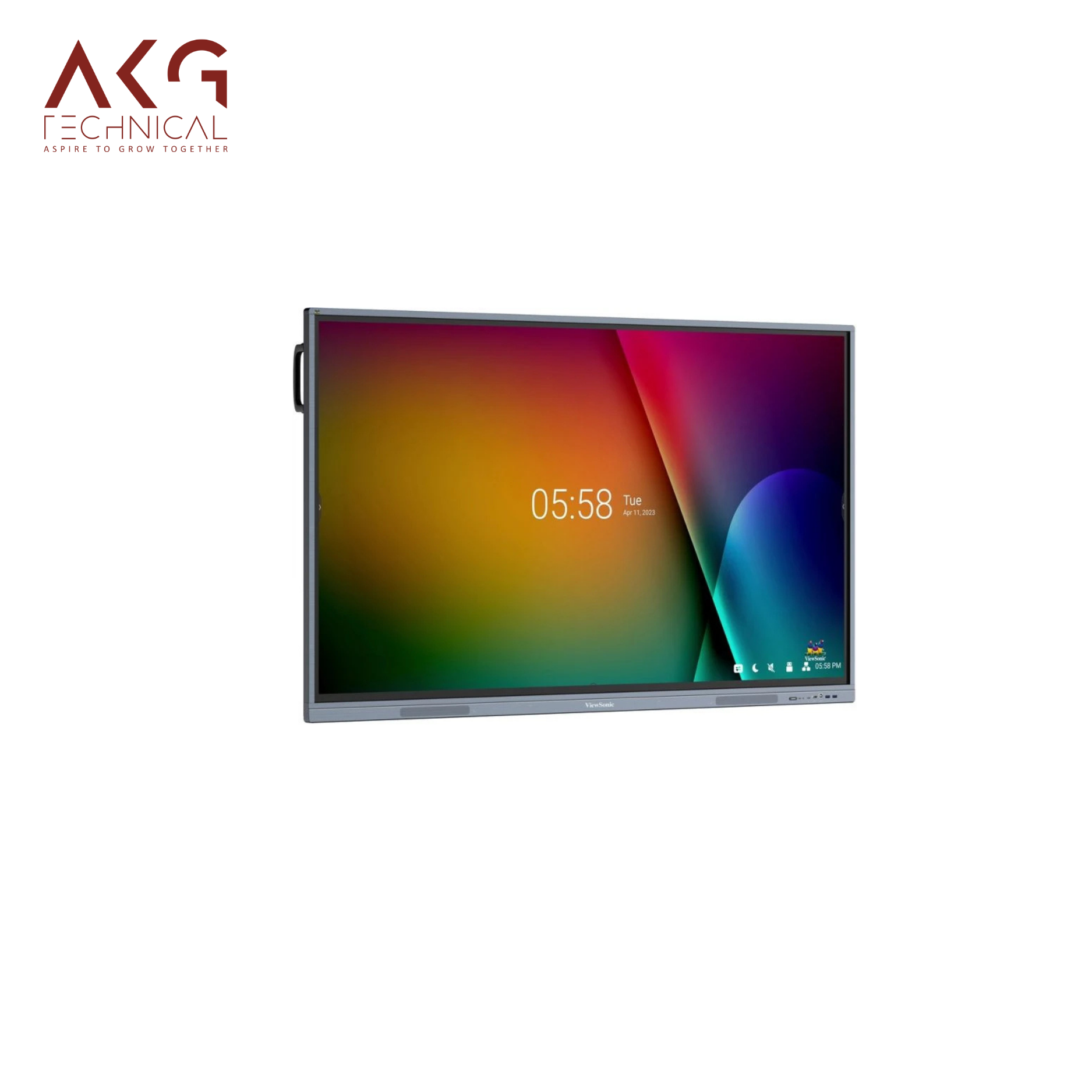

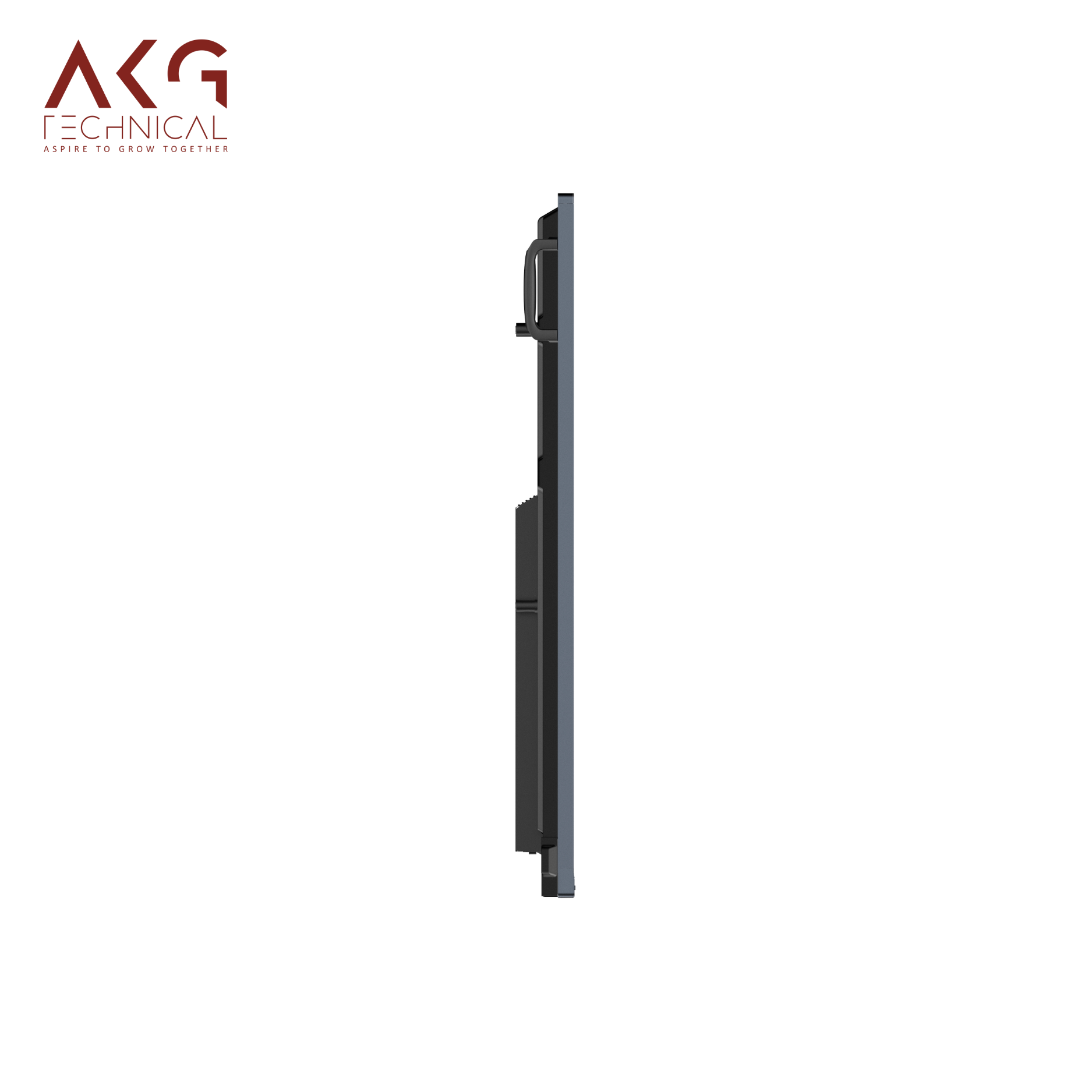

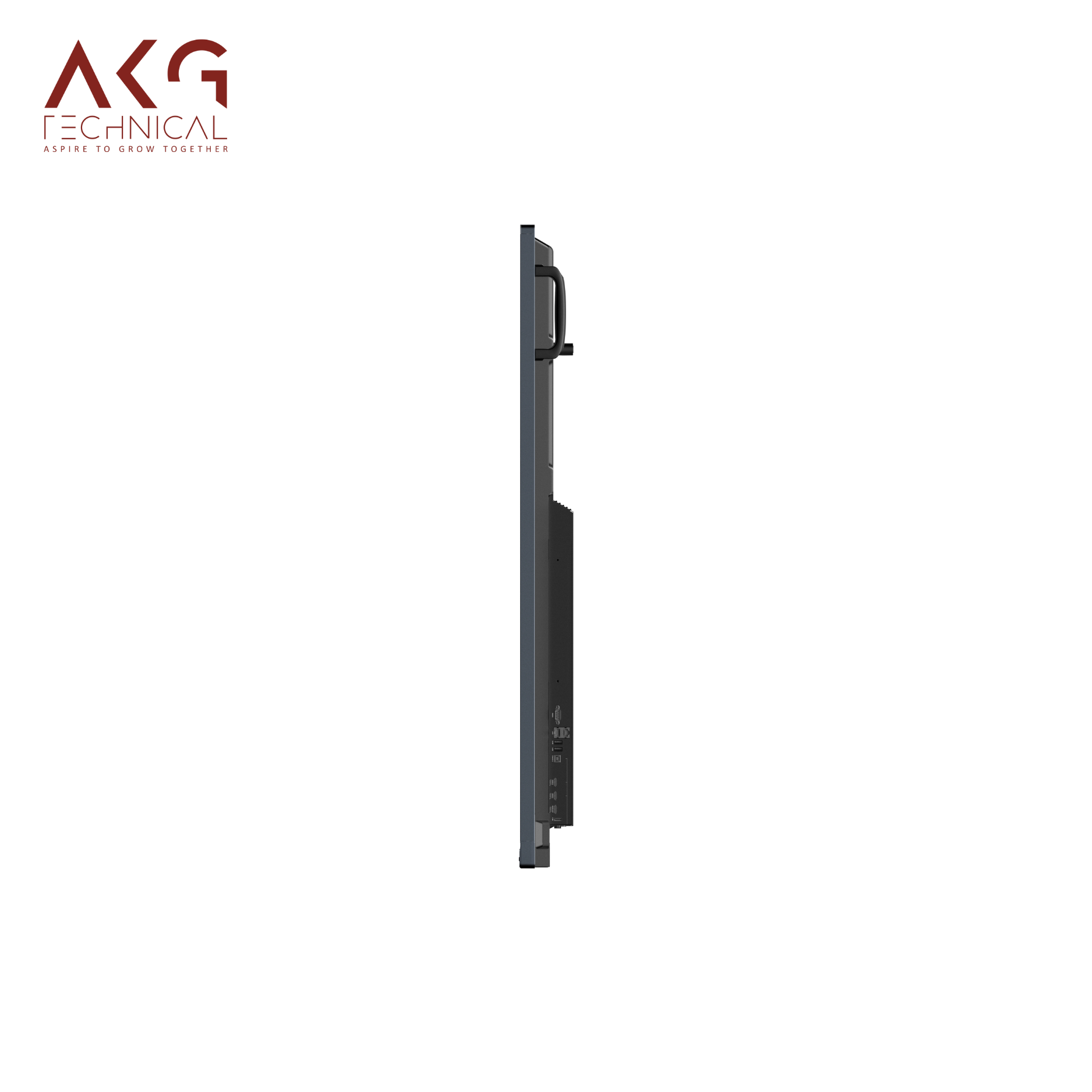

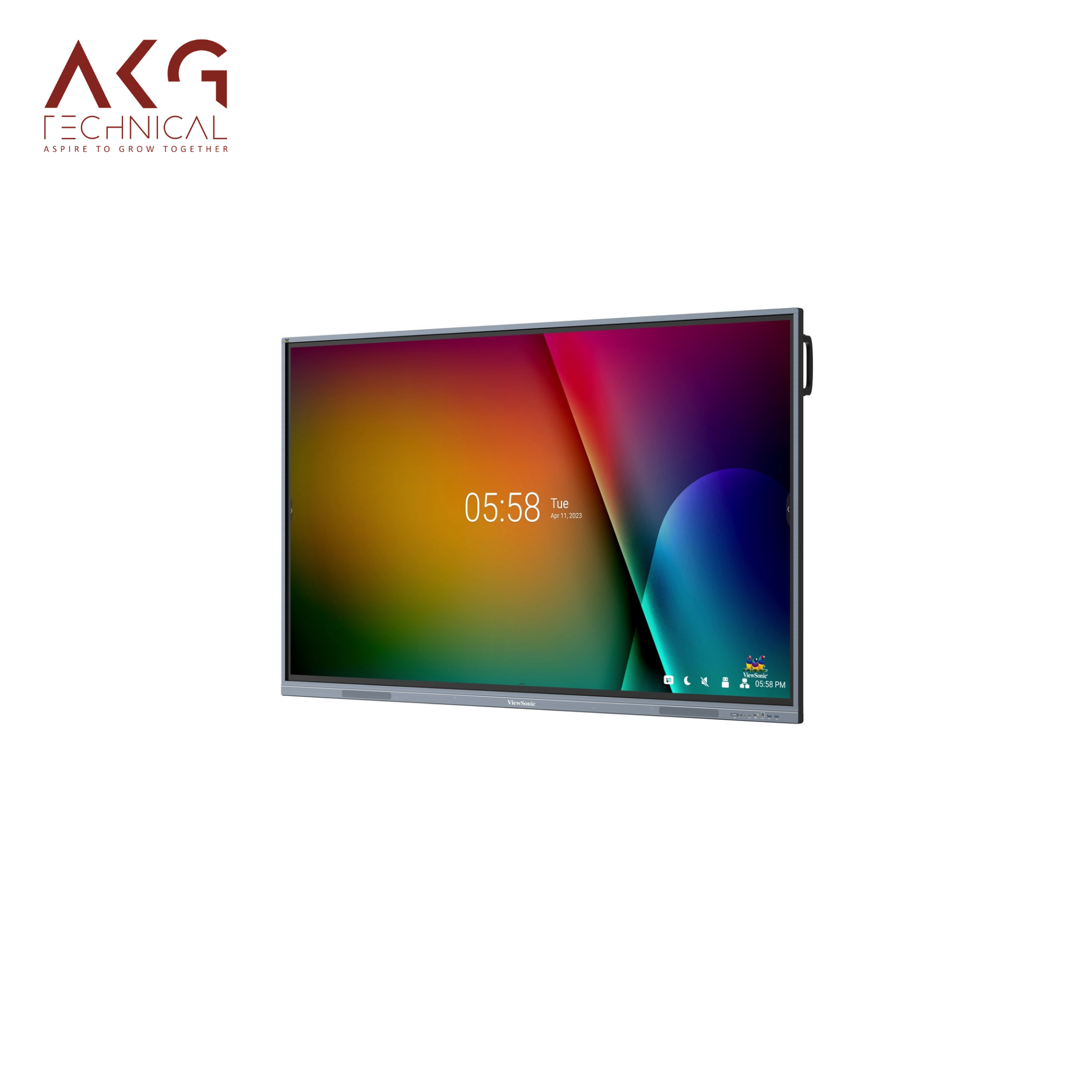

ViewSonic ViewBoard, 75″ Interactive Flat Panel, Model No. IFP7533-N
₹550000.00
Interfaced with my View Board software Works perfectly with my View Board software making it easy for educators to create interactive and animated lessons which enhances the lesson delivery experience.
About this item
- Compatible with myViewBoard software:- Effortlessly complements myViewBoard software making lesson delivery simpler by equipping teachers with enough tools to make their lessons captivating.
- Multi-tasking capabilities:- It allows better handling of multiple works at once and thus enables presentation of lessons which are highly interesting to students.
- USB-C one cable solution:- Simplifies and declutters the installation process by combining charging and data transmission in one single connection – the cable with 65W Power Delivery.
- Intuitive user interface and fast app launch:- Makes impressive sense making it easy for instructors or teachers to use apps in the right way at the best time.
- Powered by Android 11:- In expansion, provides support for many tools and cutting edge features which allows the teachers to present the classes in an advanced manner.
Interfaced with my View Board software Works perfectly with my View Board software making it easy for educators to create interactive and animated lessons which enhances the lesson delivery experience. With this integration, teachers are able to easily control and show their lesson materials helping them to have a more interactive and fulfilling class. In order to augment the lesson D delivery, the device’s multi-tasking capabilities enable educators to use more than one application at the same time. This feature allows teachers to go between note taking, web searching, and multimedia tools while delivering a single lesson without disrupting the lesson. It encourages a more interesting interactive experience to the students. This novel product increases ease of use by simplifying the process of setup through emission of charging and data transmission into a single USB C cable. The 65 W Power Delivery feature ensures that charging is done quickly and with less effort and data transfer is also performed quickly minimizing the time spent setting up technology in the classroom and ensuring that there is tidiness in the classroom. The system provides an easy to use experience with an easy to navigate menus, so the interface is user friendly. Lesson preparation and lesson management is made simple since teachers can easily reach the needed apps and resources and start working. This achieves efficiency that leads to increased productivity since time wasted managing the technology is reduced allowing educators to spend more time teaching.
| Display | Panel Size:- 75" Panel Type:- TFT LCD Module with DLED Backlight. IPS Display Area (mm):- 1649.664(H) × 927.936(V) (74.6” diagonal) Aspect Ratio:- 16:9 Resolution:- UHD 3840×2160(Pixels) Colors:- 1.07B colors Brightness:- 450 nits Contrast Ratio:- 5000:1 (max. with DCR enabled) Response Time:- 8ms Viewing Angles:- H=178, V=178 Backlight Life:- 50,000 Hours Surface Treatment:- Hardness:9H Anti-glare coating Orientation:- Landscape |
|---|---|
| Platform | Processor:- Quad-core ARM Cortex (A55*4 ) RAM:- 4GB DDR4 Storage:- 32 GB |
| Touch | Type/ Tech:- Ultra Fine Touch Technology Touch Point:-40 points touch |
| INPUT | HDMI:- HDMI-IN 2.0 x 3 (3840×2160 @60Hz) RGB / VGA: -x1 Audio:- x1 RS232:- x1 OPS:- x1 (Optional Intel Standard OPS) WiFi:- x1 (Optional VB-WIFI-002/VB-WIFI-004/VSB-050) |
| OUTPUT | HDMI:- HDMI 2.0 x1 Audio:- x1 SPDIF:- x1 |
| LAN | RJ45:- x2 |
| USB | Type A:- USB3.0:Front x2, Rear x2；USB2.0 x1 Type B:- x2 (Rear x1 + Front x1) Type C:- Front*1 (PD65W + DP1.2 + Data USB2.0 + 10M/100M sharing) |
| SPEAKERS | 18W x 2 |
| Top Camera Plate | Yes |
| Embedded OS | Android 11 |
| Bundle Software | Basic Annotation Software:- myViewBoard Whiteboard Pro Annotation Software:- myViewBoard for Windows (Embedded in optional Windows Slot-in PC) Wireless Presentation:- myViewBoard Display Wireless Presentation with Touch Feedback:- Viewboard Cast: Yes |
| Special Features | All-in-one USB port:- (combine slot-in PC/Android/HDMI USB port) Front “SmartPort™ USB” to all channels. Simple LAN sharing between IFP and slot-in device:- 10/100M for Android & Slot-in PC Light Sensor:- Yes |
| Power | Voltage:- 100-240V AC Consumption:- On:106W; Off: ≤ 0.5W |
| ERGONOMICS | Wall Mount (VESA® ):- 800×400 |
| OPERATING CONDITIONS | Temperature (º C):- 0°C to 40°C Humidity:- 20% ~ 80% RH non-condensing |
| DIMENSIONS (W x H x D) | Physical (inch / mm):- 1709 x 1020 x 88 mm / 67.3 x 40.2 x 3.5 in Packaging (inch / mm):- 1863 x 225 x 1140 mm / 73.3 x 8.6 x 44.9 in |
| WEIGHT | Net (lb / kg):- 104.3lb/47.3kg Gross (lb / kg):- 133.5lb/60.55kg |
| REGULATIONS | FCC/ICES003, EPEAT, CE EMC, LVD or CB, RoHS Green BOM & RoHS DoC, ErP, REACH SVHC List & DoC, EEL, WEEE, BSMI,BIS |
| PACKAGE CONTENTS | 1.) 3m power cord by ship area 2.) Remote control with AAA battery 3.) 3m touch USB cable 4.) Touch pen x 2 (VB-PEN-009) 5.) Quick Start Guide + Compliance statement 6.) RS232 adapter 7.) Clamp x 5 8.) Camera Plate 9.) Screw x 8 (camera 2+2, wall mount 4) 10.) HDMI cable 3m |
| Compatible Slot-in PC | VPC2-O series/VPC2-O-1B series/VPC12-WPO-15/16 |
