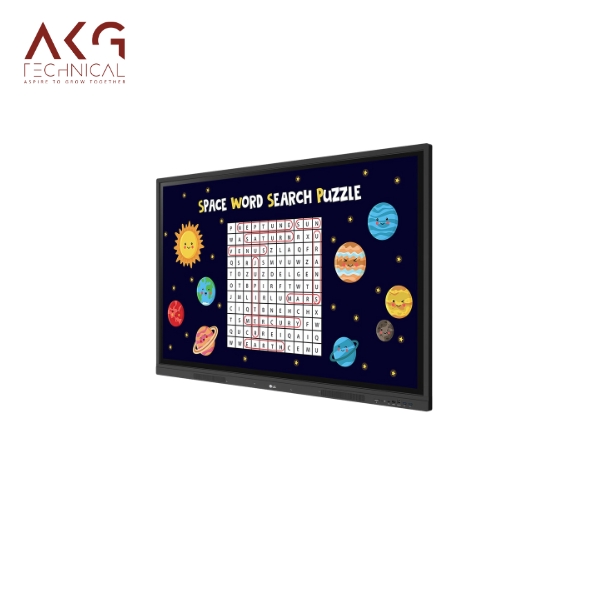

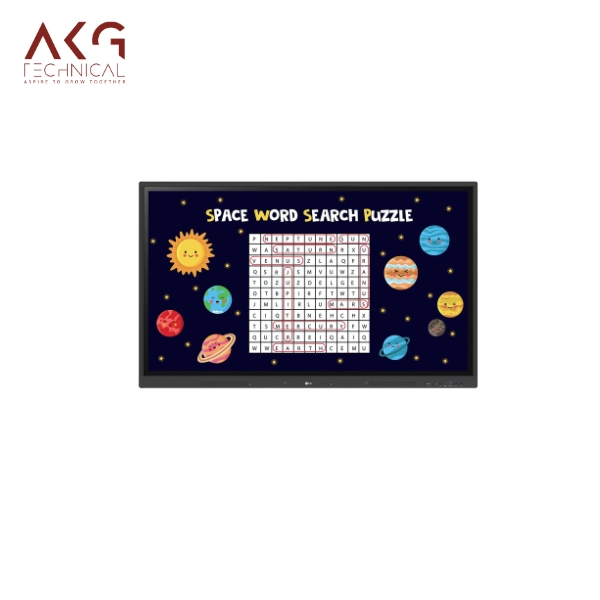

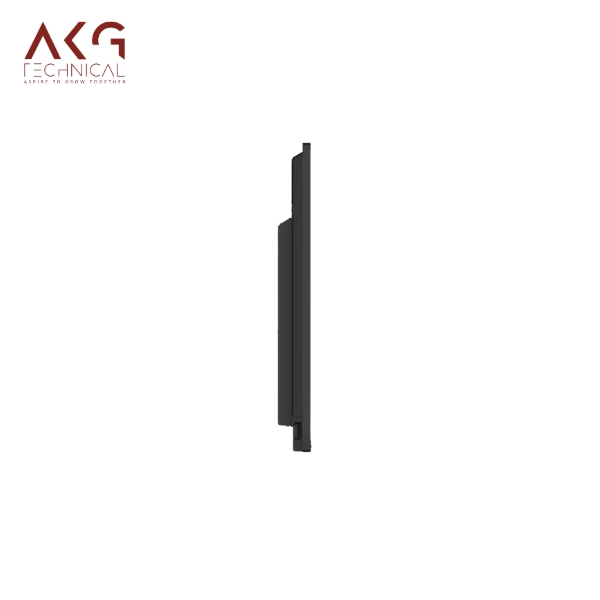

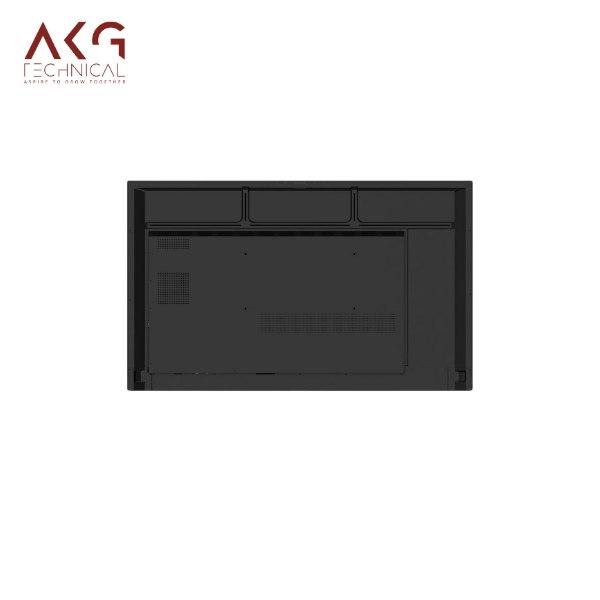

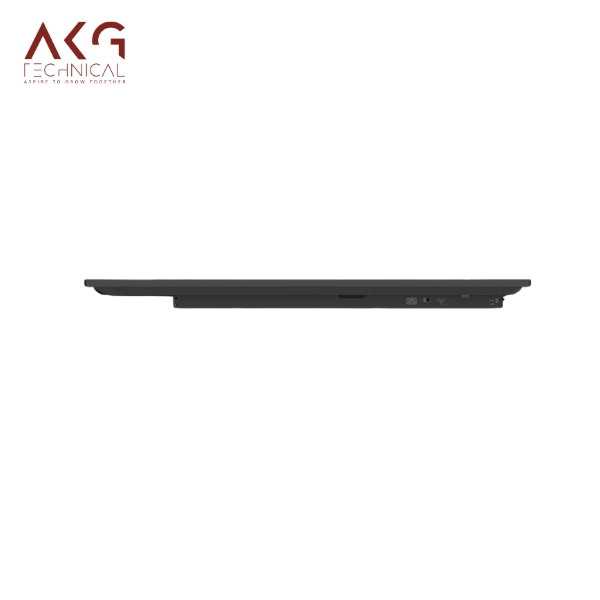

LG CreateBoard , 86″ Interactive Flat Panel, Model No. 86TR3DK
₹900000.00
LG Create Board is a Google certified device which means they allow the users to use their Google services. Moreover, the users can also link their Google accounts to download many educational apps that are available on the Google Play Store.
About this item
- Various Teaching Templates:- Some incorporate constructors materials like rulers, tables, and sticky notes that encourage students’ active participation, while fostering natural comprehension of concepts.
- Multi-touch:- Up to forty concurrent contacts are supported by the LG Create Board, enabling students active interaction with the prone interface to enable communication.
- Easy to Save/Import/Export:- The LG Create Board permits easy control of a range of import and export to enhance resources within the system.
- LG Connected Care DMS:- Manages educational sites in an efficient way by allowing troubleshooting of LG Create Boards through use of the internet. This is in the cloud.
- Remote-Control Services:- The remote controls for the LG Create Board that are comprehensible include power, scheduling, brightness control and screen lock controls.
- Broadcasting:- When there are situations of fire incidents, earthquakes or tsunamis, the system automatically alerts the teachers and the class.
- Google Certification:- There is streamlined integration of the LG Create Board with the Google platform which makes it possible to link google accounts with the board.
- Google Play Store:- Several users can install applications and tools for learning that are readily available on the Google Play Store.
- Wireless Screen Share:- Provided that the LG Create Board Share App is installed, content on the screen can be shared across a maximum of nine screens at the same time when LG Create board share is in use.
- Bluetooth Connectivity:- Wireless connections can be made to speakers, mouse, keyboards, etc, allowing an improved learning experience.
- C-type Connection:- USB-C allows you to connect several devices while giving the added benefit of charging and data transfer all through one cable.
- QR Login for Easy Cloud Access:- Helps cut down on class preparations by enabling the user to quickly verify a personal device with a QR code that is present on the home screen.
- Advanced Eye-Care:- Has a flicker-free function for minimal eye strain during prolonged usage.
- Front Connectivity Design:- Front display ports and built-in speakers enhance the visual aspect alongside providing better audio.
- Smart Viewing:- Makes it easier to conduct a lesson, as the output of two or more different contents can be displayed all at once.
- Power Saving:- Switches to standby mode, if any external command is not provided to the device for a certain length of time.
- Screen Lock:- Lets a teacher lock the screen behind a password in order to stop other people from gaining access to it.
- Secure Mode:- Prevents any blackboard sharing content by disabling the function of LG Create Board Share.
- USB Lock Mode:- Denied permission to copy data to non-whitelisted devices which are critical in highly secured environments.
- Auto-remove Files:- Taking into account the LG Create Board, users can schedule the automatic deletion of the files for enhanced security.
LG Create Board is a Google certified device which means they allow the users to use their Google services. Moreover, the users can also link their Google accounts to download many educational apps that are available on the Google Play Store. There are a variety of applications available for users such as educational games, tools and resources which help in better learning. When the LG Create Board Share app is installed on the systems, LG Create Board Share enables the real-time content sharing feature across a maximum of 9 screens which encourages group learning. The LG Create Board gives also wireless connectivity options to devices like speakers, mice, keyboards, giving the classroom a more connected feel. With USB-C, connections are made easy as you are able to charge and transfer data at the same time with just one cable. The QR code on the home page decreases the time taken to set up the class as it allows quick device identification thereby speeding the class preparation process. Furthermore, LG Create Board possesses a flicker free function to ensure minimal stress on the user’s eyes especially when they are required to carry out long tasks which makes for a user friendly learning experience.
| PANEL | Screen Size (Inch):- 86 Native Resolution:- 3840 x 2160 (UHD) Color Gamut:- NTSC 68% Surface Treatment (Haze):- Haze 28% Panel Technology:- IPS Refresh Rate:- 60Hz Viewing Angle (H x V):- 178º x 178º Operation Hours (Hours/Day):- 16/7 Back Light Type:- Direct Brightness:- 440 nits Color Depth (Number of Colors):- 1.07 Billion colors Portait / Landscape:- NO / YES Aspect Ratio:- 16:9 Dynamic CR:- 5,000:1 Response Time:- 8ms (G to G) |
|---|---|
| CONNECTIVITY | HDMI In:- YES (3ea) RGB In:- YES IR In:- NO Audio Out:- YES RJ45(LAN) Out:- YES HDMI In (HDCP Ver.):- 2.2 Audio In:- YES USB In:- USB3.0 Type A (4ea), USB2.0 Type A (1ea), USB Type C (1ea) Touch USB:- USB2.0 Type B (2ea) DP In:- NO RS232C In:- YES HDMI Out:- YES External Speaker Out:- NO DVI-D In:- NO RJ45(LAN) In:- YES (1ea) DP Out:- NO RS232C Out:- NO |
| MECHANICAL SPECIFICATION | Bezel Color:- Black Monitor Dimensions (W x H x D):- 1957 × 1160 × 100mm Bezel Width:- T/R/L/B : 15/15/15/44mm Handle:- YES Weight (Head):- 58.6Kg VESA Standard Mount Interface:- 800 x 600 mm Packed Weight:- 75.9Kg Carton Dimensions (W x H x D):- 2110 × 1283 × 225mm |
| FEATURE - HARDWARE | Internal Memory (eMMC):- 32GB Power Indicator:- YES Wi-Fi/BT (Built-in):- YES Local Key Operation:- NO Temperature Sensor:- NO Auto Brightness Sensor:- YES |
| FEATURE - SOFTWARE | Booting Logo Image:- YES Setting Data Cloning:- NO Wake on LAN:- YES PIP:- YES Crestron Connected:- NO Network Ready:- NO PBP:- YES (2PBP) Smart Energy Saving:- YES HDMI-CEC:- NO Screen Share:- YES PM mode:- NO |
| ENVIRONMENT CONDITIONS | Operation Temperature:- 0 °C to 40 °C Operation Humidity:- 10 % to 90 % |
| POWER | Power Supply:- AC 100-240V~, 50/60Hz Power Type:- Built-in Power |
| POWER CONSUMPTION | BTU (British Thermal Unit):- 1314 BTU/Hr(Typ.), 1979 BTU/Hr(Max.) Typ.:- 385W DPM:- 0.5W Power off:- 0.5W Max.:- 580W |
| SOUND | Speaker (Built-in):- YES (15W x 2) |
| CERTIFICATION | Safety:- CB / NRTL EMC:- FCC Class "A" / CE ERP / Energy Star:- YES / YES |
| OPS COMPATIBILITY | OPS Type compatible:- YES (Slot) OPS Power Built-in:- YES |
| SOFTWARE COMPATIBILITY | Connected Care:- YES |
| LANGUAGE | OSD:- English, Denmark, Finnish, German, Korean, Norwegian, Polski, Portugues(Europe), Portugues(Brazil), Romanian, Spanish, Swedish, Hungarian, Thai |
| ACCESSORY | Basic:- Power Cord 3M*1, USB Cable (Type A-Type B) 5M*1, HDMI Cable 3M*1, Writing Pen*2pcs, User Manual, QSG, Carton Box, Remote Controller(include battery 2ea), Wifi module Optional:- Wall Mount(WM-L000S), Floor Stand(ST-000F, ST-860F) |
| SPECIAL FEATURE | Conformal Coating (Power Board):- YES |
| DEDICATED FEATURE - TOUCH | Available Object Size for Touch:- Ø2 mm ↑ Protection Glass Thickness:- 3mm (Anti-Glare) Response Time ('Paint' app on Windows 10 PC):- 5ms ↓ Protection Glass Transmission:- 0.88 Accuracy (Typ.):- ±1mm Operating System Support:- Windows 7/8/10/Linux/Mac/Android (Linux/Mac Support one point touch) Interface:- USB2.0 Multi Touch Point:- Max. 40 Points(Windows), Max. 32 Points(Android) |
| DEDICATED FEATURE - CREATE BOARD | CPU:- Quad core A55 Wi-Fi:- 802.11a/b/g/n/ac/ax (WiFi 6) GPU:- Mail G52 Multicore 2 LAN:- Gigabit LAN Memory(RAM):- 8GB Bluetooth:- Bluetooth 5.0 Storage:- 64GB OS ver. (Android):- Android 13 |
