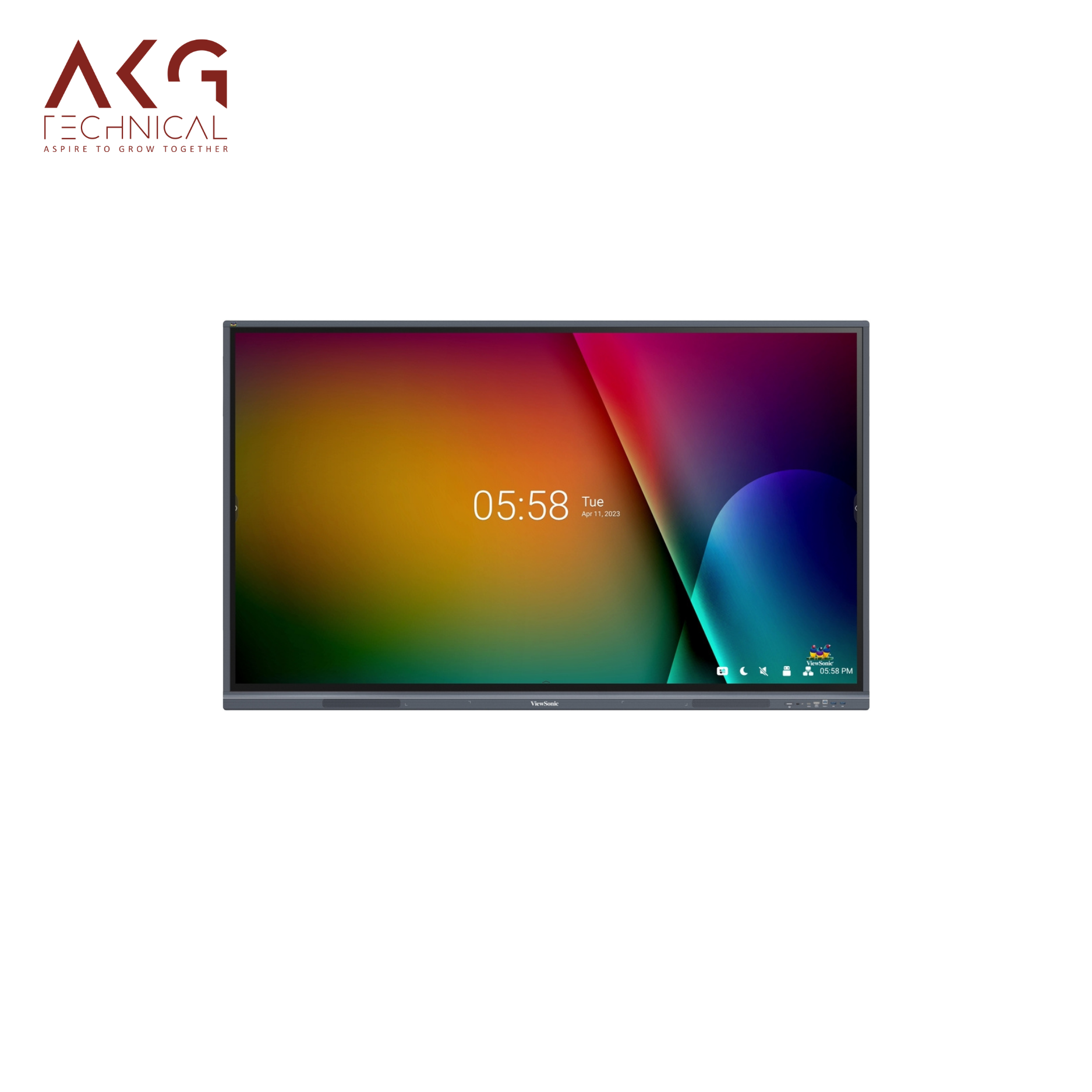

ViewSonic ViewBoard, 86″ Interactive Flat Panel, Model No. IFP8633
₹650000.00
Through integration with the View Board ecosystem, teachers have a set of tools to aid him in enhancing the lesson delivery methods effectively.
About this item
- MyViewBoard-Enhanced Lesson Delivery Integration:- With powerful tools that create engaging and interactive lessons myViewBoard software best lesson delivery tools into one.
- Multi-tasking:- Provides easy multitasking allowing teachers to run applications parallelly to enrich the learning environment of the class.
- USB C:- A convenient single system with 65W Power Delivery, perfect for a one-size fits all approach charging and data transfer system.
- User friendly interface and fast application start up:- There is a provision to seamlessly go through applications and resources to accelerate lesson execution resulting in a better learning experience
- Android 11:- Guarantees the device to be able to perform well and be compatible with many educational applications that are user-friendly and fun to learn with.
Through integration with the View Board ecosystem, teachers have a set of tools to aid him in enhancing the lesson delivery methods effectively. Therefore, this integration enhances the possibility of having interactive lessons which are actively involving to the students thus improving the students’ attention on academic content.Provides ease of use in multiple instances as teachers can handle several processes at the same time hence allowing them to work efficiently. It allows seamless use of the classroom technology hence it makes it easy for a teacher to complete an activity without being interrupted while using the technology in the classroom.The single USB-C cable solution equipped with 65W Power Delivery eases the connection process. This single wire solution helps to not only charge the device but also improves data synchronization and at the same time helps decrease the number of devices in the classroom, which leads to better organization in the classroom.The LG Create Board has a straightforward outstanding performance throughout user-interface applications for easy access to all required resources. Given quick application data to avoid delays, a teacher can access all the necessary applications to support lessons and promote the class operation process fluently.This board is powered by the latest Android 11 operating system, which is equipped with a variety of useful features and many educational software. It does offer the opportunity of having an interactive approach to learning of any given content through the many applications which helps teachers in conducting lessons that are captivating.
| Display | Panel Size:- 86" Panel Type:- TFT LCD Module with DLED Backlight. VA Display Area (mm):- 1913.04(H) x 1083.96 (V) Aspect Ratio:- 16:9 Resolution:- UHD 3840×2160(Pixels) Colors:- 1.07B colors Brightness:- 450 nits Dynamic Contrast Ratio:- 30000:1 (DCR) Response Time:- 4ms Viewing Angles:- H=178, V=178 Backlight Life:- 50,000 Hours (Min.) Surface Treatment:- Hardness: 9H Anti-glare coating Orientation:- Landscape |
|---|---|
| Platform | Processor:- Quad-core ARM Cortex (A55*4 ) RAM:- 8GB DDR4 Storage:- 128 GB |
| Touch | Type/ Tech:- Ultra Fine Touch Technology Touch Point:- 40 points touch |
| INPUT | HDMI:- HDMI-IN 2.0 x 3 (3840×2160 @60Hz) RGB / VGA:- x1 Audio:- x1 RS232:- x1 OPS:- x1 (Optional Intel Standard OPS) WiFi:- x1 (Optional VB-WIFI-002/VB-WIFI-004/VSB-050 |
| OUTPUT | HDMI:- HDMI 2.0 x1 Audio:- x1 SPDIF:- x1 |
| LAN | RJ45: x2 |
| USB | Type A:- USB3.0 x4 (Front x2, Rear x2)；USB2.0 x1 Type B:- x2 (Front x1, Rear x 1) Type C:- Front*1 (PD65W + DP1.2 + Data USB2.0 + 10M/100M sharing) |
| SPEAKERS | 20W x 2 |
| Top Camera Plate | Yes |
| Embedded OS | Android 11 |
| Bundle Software | Basic Annotation Software:- myViewBoard Whiteboard Pro Annotation Software:- myViewBoard for Windows (Embedded in optional Windows Slot-in PC) Wireless Presentation:- myViewBoard Display Wireless Presentation with Touch Feedback:- Viewboard Cast: Yes |
| Special Features | All-in-one USB port:- (combine slot-in PC/Android/HDMI USB port) Front “SmartPort™ USB” to all channels. Simple LAN sharing between IFP and slot-in device:- 10/100M for Android & Slot-in PC Light Sensor:- Yes |
| Power | Voltage:- 100-240V AC Consumption:- On:154W ; Off: ≤ 0.5W |
| ERGONOMICS | Wall Mount (VESA® ):- 800*600 |
| OPERATING CONDITIONS | Temperature (º C):- 0°C to 40°C Humidity:- 20% ~ 80% RH non-condensing |
| DIMENSIONS (W x H x D) | Physical (inch / mm):- 1957 x 1160 x 100 mm / 77 x 45.7 x 3.9 in Packaging (inch / mm):- 2110 x 1283 x 225 mm /83 x 50.5 x 8.9 in |
| WEIGHT | Net (lb / kg):- 129.1lb/58.55kg Gross (lb / kg):- 167.3lb/75.9kg |
| REGULATIONS | FCC/ICES003, EPEAT, CE EMC, LVD or CB, RoHS Green BOM & RoHS DoC, ErP, REACH SVHC List & DoC, EEL, WEEE, BSMI,BIS |
| PACKAGE CONTENTS | 1.) 3m power cord by ship area 2.) Remote control with AAA battery 3.) 3m touch USB cable 4.) Touch pen x 2 (VB-PEN-009) 5). Quick Start Guide + Compliance statement 6.) RS232 adapter 7.) Clamp x 5 8.) Camera Plate 9.) Screw x 8 (camera 2+2, wall mount 4) 10.) HDMI cable 3m |
| Compatible Slot-in PC | VPC2-O series/VPC2-O-1B series/VPC12-WPO-15/16 |
