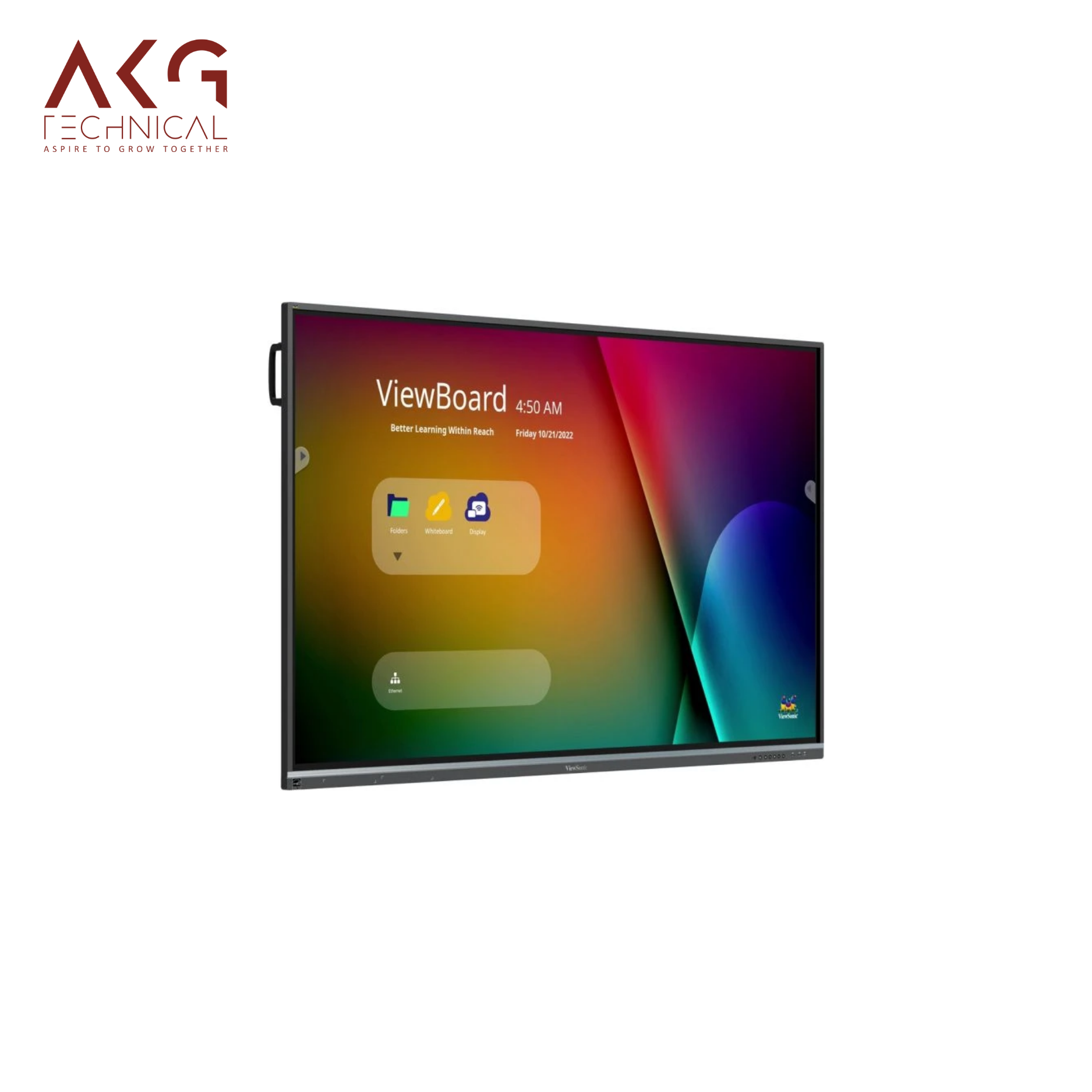

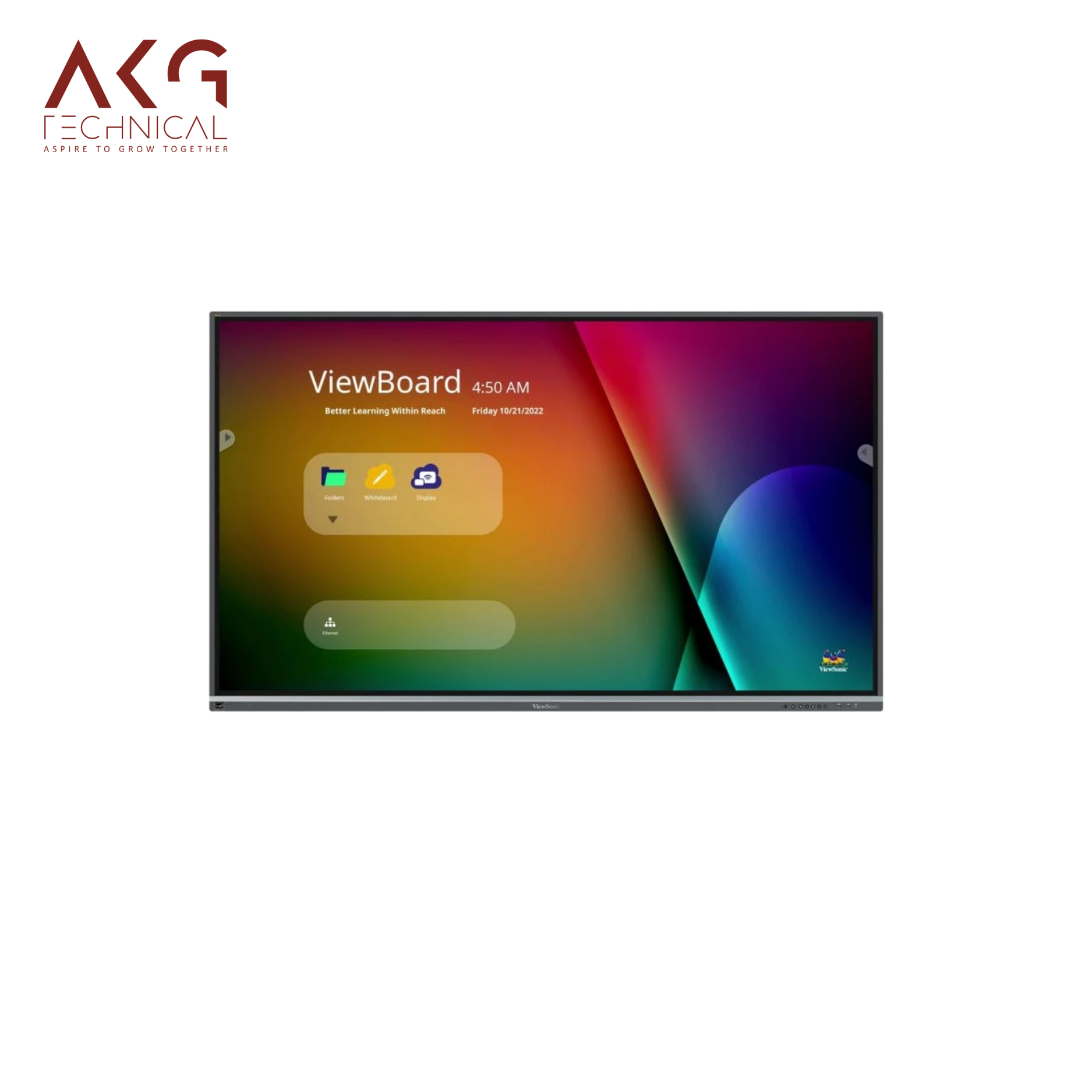

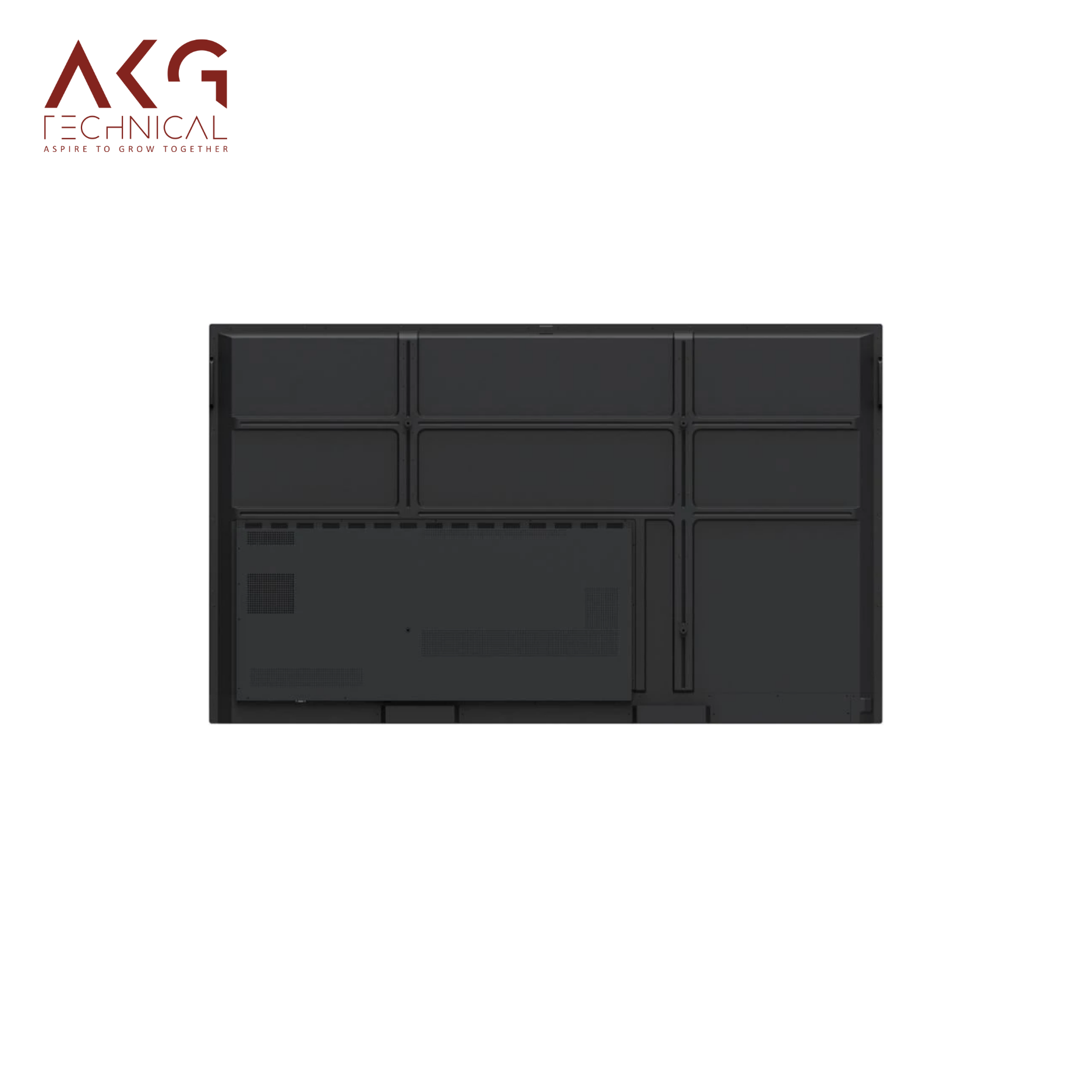

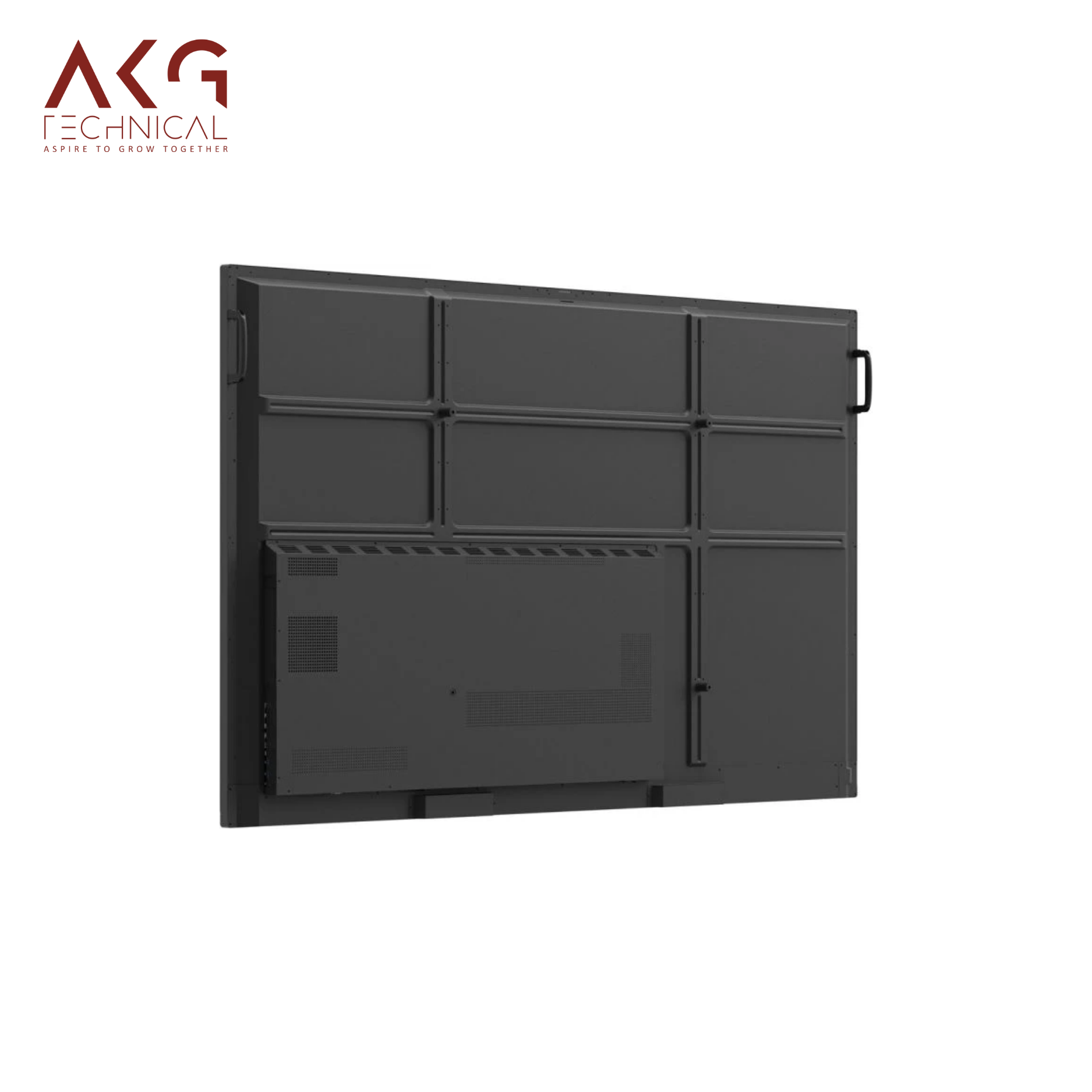

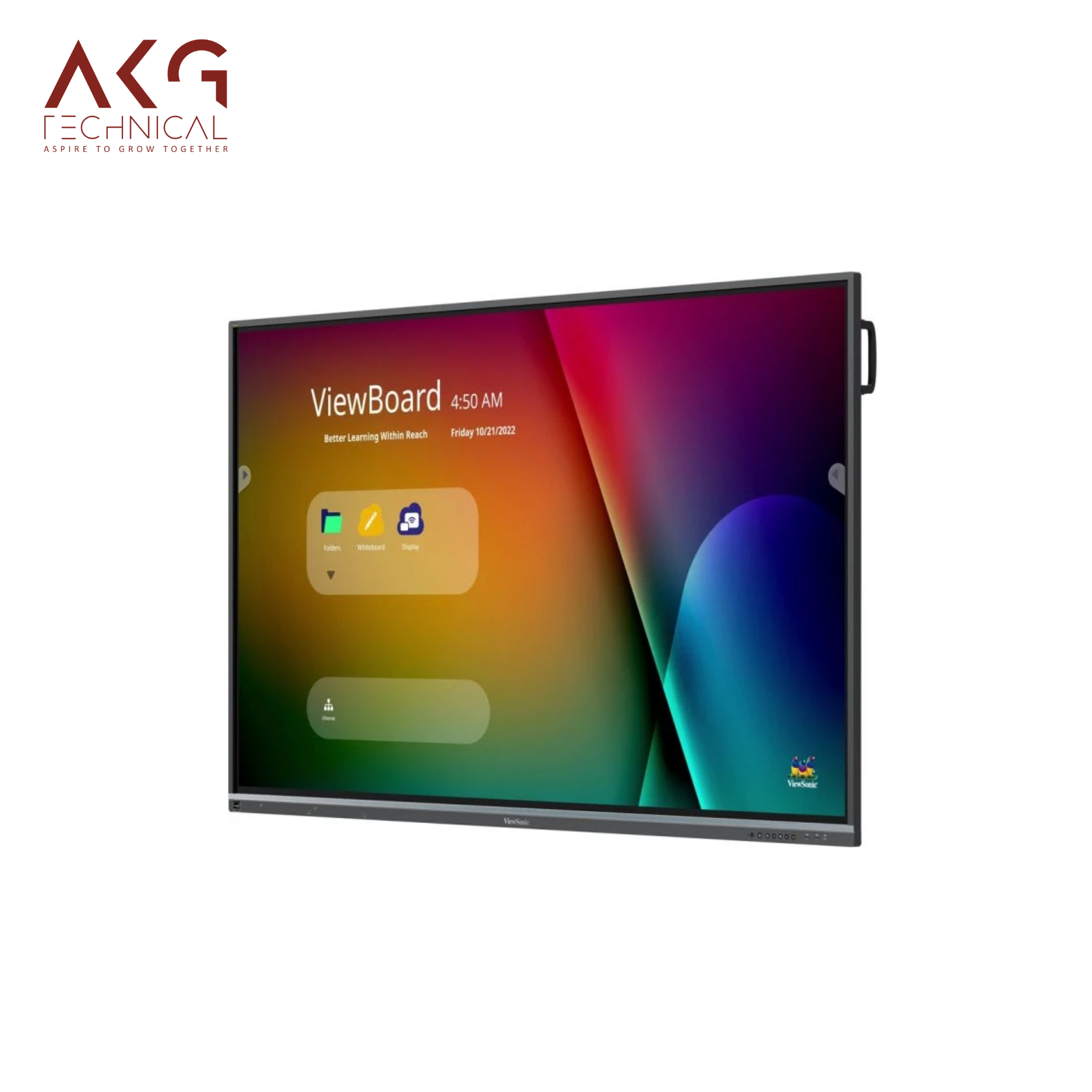

ViewSonic ViewBoard , 86″ Interactive Flat Panel, Model No. IFP8650-5
₹900000.00
Ultra Fine Touch Technology that supports up to 40 touch points at once, it provides an outstanding level of accuracy and responsiveness.
About this item
- Advanced Touch Technology:- Utilize Ultra Fine Touch Technology, allowing for any movements to the Surface of the screen to be interpreted correctly; an unprecedented 40 simultaneous touch points are even possible, quite literally a multitouch film.
- Interactive Whiteboard Software:- Imaginemy View Board, enabling dynamic, interactive and deeply engaging lectures and presentations with its advanced Whiteboard and other useful tools.
- Versatile Screen Sharing:- My View Board Display and View Board Cast can also wirelessly cast content via USB-C, as well as Airplay and Chromecast, making it much easier.
- Smart Device Management:- My View Board Manager makes remote control and multimedia streaming easier – all with an emphasis on a fast device operation and efficient information management.
- Powerful Android OS:- Powerful Android Operating System which is Octa-Core powered Android 11 while the update to Android 13 will support long-term advancement features.
Ultra Fine Touch Technology that supports up to 40 touch points at once, it provides an outstanding level of accuracy and responsiveness. This capability simulates the experience of a person writing on paper with a pen and is most suitable for various creative activities, brainstorming sessions, and learning environments. Its degree of precision makes it possible for smooth marking and easy navigation for teachers and professionals as well. For your teaching and presentations interact with my View Board Whiteboard which comes along with all the classroom tools and advanced software. It encourages effective learning by supporting multipurpose content, digital marking, and real-time collaboration. Here, you do not have to worry, this software saves your precious time by being user-friendly and helps you to prepare lessons that will be not only interesting but also active for your students. While sharing any content you do not need to worry as there are wired and wireless options available. For instance, USB-C connection adds a lot of functionality making the appliance compatible with my View Board Display and View Board Cast. Besides, with Airplay and Chromecast support, it allows fast and easy sharing from more devices, making it easier to work in classrooms, meeting rooms, or even in online sessions.
| Display | Panel Size:- 86" Panel Type:- TFT LCD Module with DLED Backlight. IPS Display Area (mm):- 1913.0(H) x 1084.0 (V) Aspect Ratio:- 16:9 Resolution:- UHD 3840×2160 Colors:- 1.07B colors (10bit) Brightness:- 450 nits (typ.) Contrast Ratio:- 1200:1 (typ.) 5000:1 (DCR) Response Time:- 8ms Viewing Angles:- H = 178, V = 178 typ. Backlight Life:- 50,000 hours (Min) Surface Treatment:- Hardness: 9H, Anti-glare coating Bezel:- Slim Orientation:- Landscape |
|---|---|
| Platform | Processor:- ARM Cortex-A73*4 + Cortex-A53*4 RAM:- 8GB Storage:- 64GB |
| Touch | Type/ Tech:- Ultra Fine Touch Techology (IR Recognition) Touch Resolution:- 32768 ×32768 Touch Point: Windows: 40 points of touch, Android : 20 points of touch |
| INPUT | HDMI:- 2.0 x 3 (3840×2160 @60Hz, HDCP2.2, HDMI1 with CEC/ARC) RS232:- x1 OPS:- x1 WiFi:- x 1 module slot |
| OUTPUT | HDMI: x1 (4K@60Hz) Audio: x1 (Earphone out) SPDIF: x1 (optical) |
| LAN | RJ45: x2 |
| USB | Type A:- 2.0 x 2 3.0 x 4 Type B:- x2, for touch Type C:- x1 ( DP 1.2, USB2.0, PD65W, Ethernet 100M) |
| SPEAKERS | 12W x 2 + 16W x 1 subwoofers |
| Top Camera Plate | Yes |
| Embedded OS | Android 11 (Upgradable to Android 13) |
| Bundle Software | Basic Annotation Software:- myViewBoard Pro Annotation Software:- myViewBoard for Windows (Embedded in Windows Slot-in PC) Wireless Presentation:- vCast/myViewBoard Display App |
| Special Features | All-in-one USB port:- “SmartPort™ USB” to all channels. Simple LAN sharing between IFP and slot-in device:- Yes Light Sensor:- Yes |
| Power | Voltage:- 100-240VAC +/- 10% Wide Range Consumption:- 175W(typ.), 0.5W (off) |
| ERGONOMICS | Wall Mount (VESA® ):- 800 mm x 600 mm |
| OPERATING CONDITIONS | Temperature (º C): 0°C to 40°C Humidity: 10% ~ 90% RH non-condensing |
| DIMENSIONS (W x H x D) | Physical (inch / mm):- 77.1 x 45.7 x 3.5 in / 1958 x 1160 x 90 mm Packaging (inch / mm):- 83.6 x 53.0 x 11.0 in / 2123 x 1345 x 280 mm |
| WEIGHT | WEIGHT |
| REGULATIONS | cTUVus, FCC/ICES003, Energy Star 8.0, EMC/CE, CB/LVD, GOST-R/EAC, UkrSEPRO, EPEAT, Mexico NOM , Mexico Energy, UKCA, UK-EEL, BSMI, BIS, LBL( Low Blue Light Certification), Flicker Free, Green BOM, RoHS, ErP-Eco, REACH, SCIP, WEEE, TPCH , Packing waste, CA65, PAIA |
| PACKAGE CONTENTS | 1. Power cord 2. Remote control with AAA battery 3. Touch USB cable 4. Touch pen x 2 (VB-PEN-009) 5. Quick Start Guide + Compliance statement 6. RS232 adapter 7. Clamp x 5 8. Camera Plate 9. Screw x 8 10. HDMI cable |
| Compatible Slot-in PC | • VPC2-O series • VPC2-O-B series • VPC25-W33-O1-1B • VPC27-W53-O1-1B • VPC12-WPO-17 • VPC12-WPO-18 |
