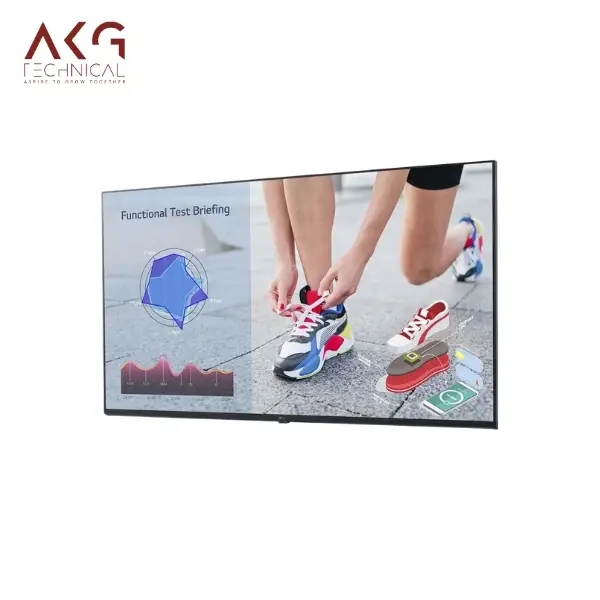

LG 43″ webOS UHD Signage, Model No. 43UL3J-B

50000.00

The LG UL3J series exhibits LG One Quick Share that provides users with wireless screen sharing that is seamless, easy content sharing through the series unit, USB transmission or app is a piece of cake.

About this item

  • LG One:Quick Share:- Use USB dongle and embedded Wi-Fi to share the PC screen with the UL3J series quickly. Some basic settings can be changed like volume and picture mode without a remote.
  • Remote Monitoring and Control:- A user friendly web-based tool is available for monitoring that aids in operations minimally.
  • Compatible with AV Control Systems:- Incorporates Crestron Connected for integration and automated AV controls giving better management.
  • Easy Menu Setup:- Menu’s used often for many industries are arranged to make it easy for users.
  • Video Conference Compatibility:- It is compatible with Cisco System for visual meetings; smart and integrated control.
  • Wireless Access Point:- Works as a virtual router to link mobile phone connections.
  • Ultra HD Picture Quality:- Get brighter images and realistic details with UHD plus wide angle viewing panel of IPS.
  • Slim Design:- The space occupied is made small, and the thickness is compact which makes installation easy.
  • LG webOS 6.0:- With enhanced LG webOS 6.0, performance is made better and the user interface interaction is easy with multitasking.
  • Sensor Compatibility:- USB plug ins allow for the easy addition of external sensors for example temperature or NFC/RFID.
  • Wireless Content Sharing and Updates:- Distributing contents and software updating of the network is made easier through embedded Wi-Fi.

The LG UL3J series exhibits LG One Quick Share that provides users with wireless screen sharing that is seamless, easy content sharing through the series unit, USB transmission or app is a piece of cake. The monitoring of the series is also remote while the control interface is web-based, meaning it has been simplified in design and is easy to use. They also interface easily with professional AV systems through the use of the Crestron Connected® which allows for better management and control. Cisco and other video conference systems are also supported and this provides for great opportunities in integration for smarter meetings. The UL3J series also provides for mobile devices and this allows them to directly connect and it is an advantage as it acts as an access point that is wireless. Only requiring ostensible installation, it’s ultra hd resolution also provides the proper vivid and realistic visuals one would be looking for alongside a sufficient wide angle viewing thanks too the IPS panel. With thinned down bezels and relatively compact thickness, slim design enhances its beauty and even space is saved.

PANEL

Screen Size (Inch):- 43
Panel Technology:- IPS
Back Light Type:- Direct
Aspect Ratio:- 16:9
Native Resolution:- 3840 x 2160 (UHD)
Refresh Rate:- 60Hz
Brightness:- 300nit (Typ.)
Dynamic CR:- 1,000,000:1
Color Gamut:- DCI 80%
Viewing Angle (H x V):- 178º x 178º
Color Depth (Number of Colors):- 1.07 Billion colors
Response Time:- 8ms (G to G)
Surface Treatment (Haze):- Haze 3%
Operation Hours (Hours/Day):- 16/7
Portait / Landscape:- YES / YES
Transparency:- N/A
QWP (Quarter Wave Plate):- N/A

CONNECTIVITY

HDMI In:- YES (3ea)
HDMI In (HDCP Ver.):- 2.2/1.4
DP In:- NO
DVI-D In:- NO
RGB In:- NO
Audio In:- NO
RS232C In:- YES
RJ45(LAN) In:- YES (1ea)
IR In:- NO
USB In:- USB2.0 Type A (2ea)
HDMI Out:- NO
DP Out:- NO
Audio Out:- YES
Touch USB:- NO
External Speaker Out:- NO
RS232C Out:- YES
RJ45(LAN) Out:- NO
IR Out:- NO
Daisy Chain:- NO

MECHANICAL SPECIFICATION

Bezel Color:- Ashed Blue
Bezel Width:- Off : 6.9/6.9/6.9/18.4mm On : 12.8/12.8/12.8/19.9mm
Weight (Head):- 8.8Kg
Packed Weight:- 10.9Kg
Monitor Dimensions (W x H x D):- 967 x 564 x 57.1mm
Monitor Dimension with Stand (W x H x D):- N/A
Handle:- NO
VESA Standard Mount Interface:- 200 x 200 mm
Carton Dimensions (W x H x D):- 1055 x 660 x 142mm
Weight (Head+Stand):- N/A

FEATURE - HARDWARE

Internal Memory (eMMC):- 16GB
Wi-Fi/BT (Built-in):- YES
Temperature Sensor:- YES
Auto Brightness Sensor:- YES
Pixel Sensor:- NO
Proximity Sensor:- NO
Current Sensor:- NO
BLU Sensor:- NO
Humidity Sensor:- NO
Acceleration(Gyro) Sensor:- NO
Power Indicator:- NO
Local Key Operation:- YES
FAN (Built-in):- NO

FEATURE - SOFTWARE

OS Ver. (webOS):- webOS 6.0
Local Contents Scheduling:- YES
Group Manager:- YES
USB Plug & Play:- YES
Fail Over:- YES
Booting Logo Image:- YES
No Signal Image:- YES
RS232C Sync:- YES
Local Network Sync:- YES
Backlight Sync:-NO
PIP:- NO
PBP:- NO
Screen Share:-YES
Video Tag:- YES (4 Video Tag)
Play Via URL:- YES
Screen Rotation:- YES
External Input Rotation:- YES
Gapless Playback:- YES
Tile Mode Setting:- YES
Setting Data Cloning:- YES
SNMP:- YES
ISM Method:- YES
Auto Set ID:- YES
Status Mailing:- YES
Control Manager:- YES
Cisco Certification:- YES
Crestron Connected:- YES
Smart Energy Saving:- YES
PM mode:- YES
Wake on LAN:- YES
Network Ready:- YES
BEACON:- YES
HDMI-CEC:- YES
SI Server Setting:- YES
webRTC:-YES
Pro:Idiom:- YES
Brightness Compensation:- NO
W/B Setting by Grey scale:- NO
Scan Inversion:- NO

ENVIRONMENT CONDITIONS

Operation Temperature:- 0 °C to 40 °C (Portrait Scene : 0 °C to 35 °C)
Operation Humidity:- 10 % to 80 %

POWER

Power Supply:- AC 100-240V~, 50/60Hz
Power Type:- Built-in Power

POWER CONSUMPTION

BTU (British Thermal Unit):- 273 BTU/Hr(Typ.), 409 BTU/Hr(Max.)
Smart Energy Saving (70%):- 56W
DPM:- 0.5W
Power off:- 0.5W
Max.:- 120W
Typ.:- 80W

SOUND

Speaker (Built-in):- YES (10W x 2)

CERTIFICATION

Safety:- CB / NRTL
EMC:- FCC Class "A" / CE
ERP / Energy Star:- YES / NO
ePEAT(US only):- NO

OPS COMPATIBILITY

OPS Type compatible:- NO
OPS Power Built-in:- NO

SOFTWARE COMPATIBILITY

SuperSign CMS:- YES
SuperSign Control+:- YES
SuperSign WB:- YES
SuperSign Cloud:- NO
Promota:- YES (Not available for EU/CIS)
Mobile CMS:- NO
Connected Care:- YES

LANGUAGE

OSD:- English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Türkçe, Arabic, polski

ACCESSORY

Basic:-Remote Controller(include battery 2ea), Power Cord, Regulation Book, Phone to D-Sub9 Gender, Cable Holder
Optional:- NO

SPECIAL FEATURE

Overlay Touch Compatibility:- N/A
Smart Calibration:- N/A
Tilt (Face up):- N/A
Tilt (Face down):- N/A
IP Rating:- N/A
Conformal Coating (Power Board):- YES
Power Protection:- N/A
Direct Sunlight:- N/A
