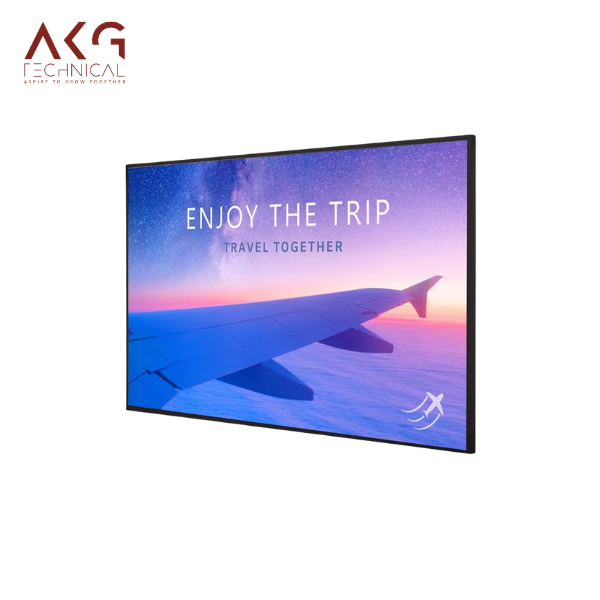

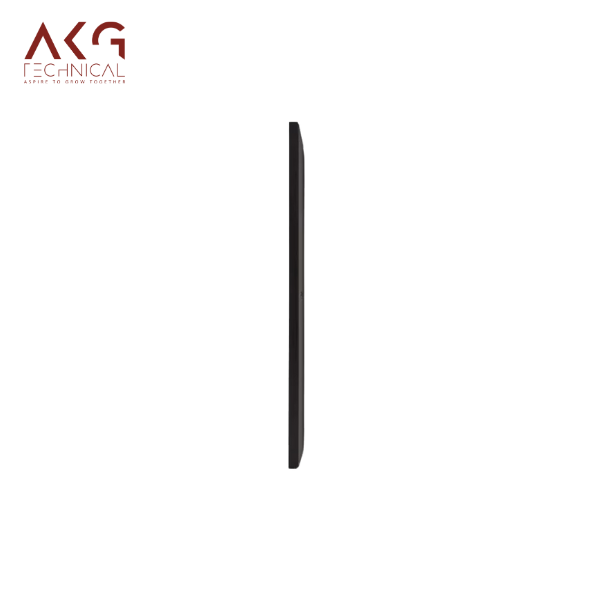

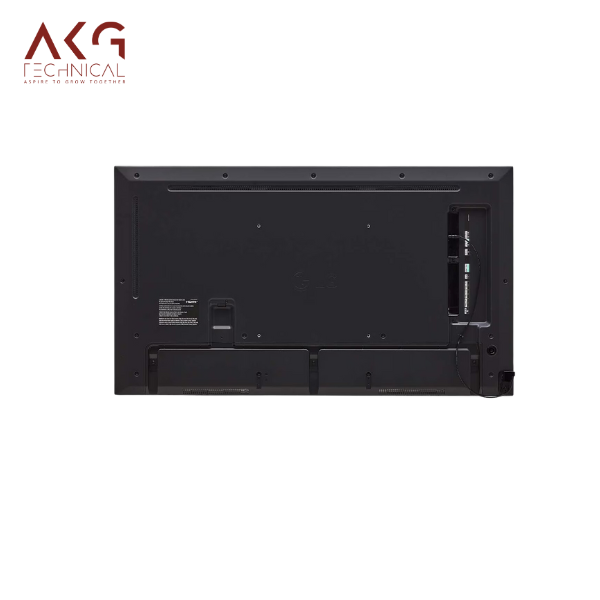

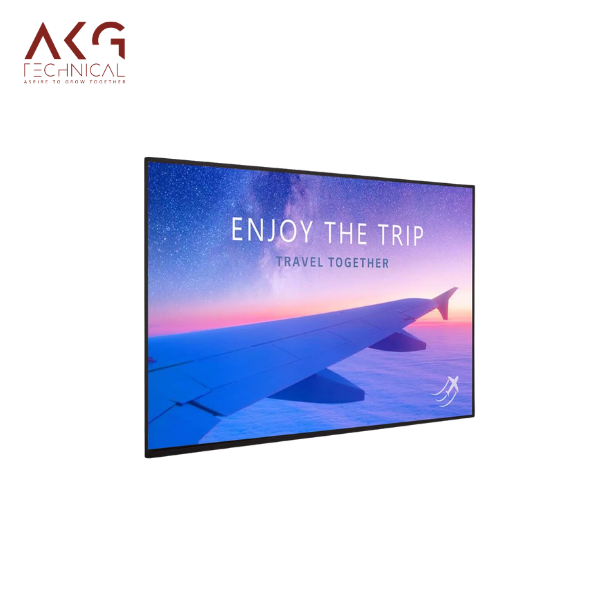

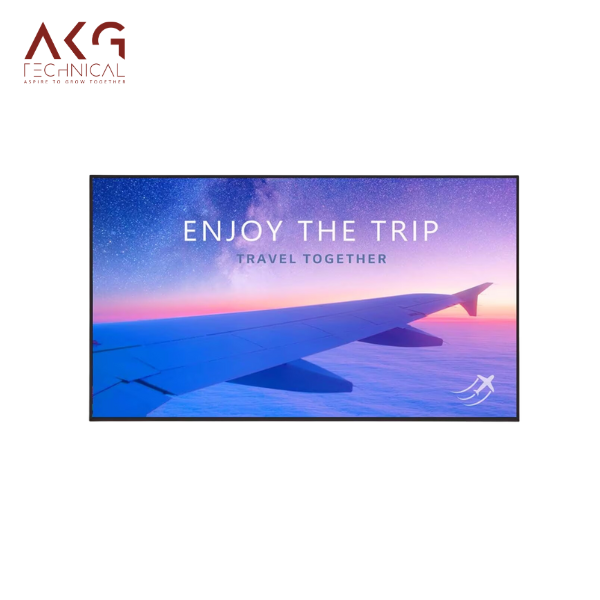

LG 49″ UHD Signage Display, Model No. 49UH7N-E

70000.00

The reliability and outstanding performance of the LG UH7N-E digital signage is created in order to conform to the today’s business area requirements.

About this item

  • Ultra HD:- Offers stunning picture quality with a resolution that is 4 times that of FHD.
  • Easily Accessible webOS:- It allows seamless multitasking without the requirement of an external media player thanks to its integrated high-performance SoC.
  • Durability Improvement:- A protective conformal coating stratagem is employed to maintain corrosion resistance against salt, dust, iron powder and humidity when within the business setting to assist in maintaining reliability.
  • Design That Saves Space:- Close-to-wall mounting requiring only 13 mm distance from wall is made possible by the use of thin bezels, straightforward routing of cables, and power cords located inside the units.
  • State-of-the-art Protection:- Encrypted with LG Enhanced Kernel Protection(‘EKP’) which specializes in protecting important information of the target device.
  • Materials That Are Environmentally Friendly:- The back covers consist of reclaimed resins, use of recycled materials is not limited to this model only as there are plans to extend these practices to other models as well.*
  • Signage Super Solutions :- It simple integrated unique signage solutions for efficient and effective digital signs.
  • Carbon Footprint Certification:- Successful implementation of carbon footprint certified system from cradle to grave for effective and responsible, sustainable operations.

The reliability and outstanding performance of the LG UH7N-E digital signage is created in order to conform to the today’s business area requirements. Its ultra-high resolution which is four times of FHD is perfect for visual clarity so as to improve the viewing experience. The SoC is quite powerful and the webOS supports multitasking without the use of an external media player. The UH7N-E is extremely robust and is constructed with a conformal coating on the power board, which protects it from salt, dust, iron powder, and humidity ensuring great reliability. It has slender bezels, efficient cable arrangement, and concealed power inlets which enhance its engineering allowing it to be flush mounted with a wall bracket only 13 mm from the wall, therefore making the wiser option in case you would like to utilize the space well.

PANEL

Screen Size (Inch):- 109.22 cm (43)
Panel Technology:- IPS
Back Light Type:- Edge
Aspect Ratio:- 16:9
Native Resolution:- 3840 x 2160 (UHD)
Refresh Rate:- 60Hz
Brightness:- 700nit (Typ.)
Dynamic CR:- 1,000,000:1
Color Gamut:- BT709 95%
Viewing Angle (H x V):- 178 X 178
Color Depth (Number of Colors):- 8bits + FRC, 1.07Billion colors
Response Time:- 8ms (G to G)
Surface Treatment (Haze):- 28%
Life time:- 50,000Hrs (Min.)
Operation Hours (Hours/Day):- 24/7
Portait / Landscape:- Yes / Yes

CONNECTIVITY

HDMI In:-Yes(2), 3840×2160@60Hz, HDCP 2.2/1.4
DP In:- Yes(1), 3840×2160@60Hz, HDCP2.2/1.3
RS232C In:- Yes(1)
RJ45(LAN) In:- Yes(1)
IR In:- Yes(1)
USB In:- USB2.0 Type A(1), USB2.0 Type C ((1), without PD funtion)
DP Out:- Yes(1), 3840×2160@60Hz, Input : HDMI1/2/DP/USB-C
Audio Out:- Yes(1)
RS232C Out:- Yes(1), 4pin Phone-jack
IR Out:- NO (Support IR daisy chain via RS232C IN/OUT)
Daisy Chain:- Yes(Input HDMI, DP, USB C / Output DP)

MECHANICAL SPECIFICATION

Bezel Color:- Black
Bezel Width:- T/R/L: 8.9mm, B: 12.9mm
Weight (Head):-11.1 kg
Packed Weight:- 12.8 kg
Monitor Dimensions (W x H x D):- 963.0 x 556.2 x 29.7mm (without IR)
VESA Standard Mount Interface:- 200 x 200
Carton Dimensions (W x H x D):- 1055.0 x 660.0 x 142.0mm

FEATURE - HARDWARE

Internal Memory (eMMC):- 16GB
Wi-Fi/BT (Built-in):- Yes
Temperature Sensor:- Yes
Auto Brightness Sensor:- Yes
Acceleration(Gyro) Sensor:- Yes
Local Key Operation:- Yes

FEATURE - SOFTWARE

OS Ver. (webOS):- webOS6.0
Local Contents Scheduling:- Yes
Group Manager:- Yes
USB Plug & Play:- Yes
Fail Over:- Yes
Booting Logo Image:- Yes
No Signal Image:- Yes
RS232C Sync:- Yes
Local Network Sync:- Yes
PIP:- Yes
PBP:- Yes(4)
Screen Share:- Yes
Video Tag:- Yes(4)
Play Via URL:- Yes
Screen Rotation:- Yes
External Input Rotation:- Yes
Gapless Playback:- Yes
Tile Mode Setting:- Yes (Max. 15×15)
Setting Data Cloning:- Yes
SNMP:- Yes
ISM Method:- Yes
Auto Set ID:- Yes
Status Mailing:- Yes
Control Manager:- Yes
Cisco Certification:- (TBD)
Crestron Connected:- Yes
Smart Energy Saving:- Yes
PM mode:- Yes
Wake on LAN:- Yes
Network Ready:- Yes
BEACON:- Yes
HDMI-CEC:- Yes
SI Server Setting:- Yes
webRTC:- Yes
Pro:Idiom:- Yes

ENVIRONMENT CONDITIONS

Operation Temperature:- 0 °C to 40 °C
Operation Humidity:- 10 % to 80 %

POWER

Power Supply:- AC 100-240V~, 50/60Hz
Power Type:- Built-In Power

POWER CONSUMPTION

BTU (British Thermal Unit):- 273 BTU/Hr(Typ.), 409 BTU/Hr(Max)
Smart Energy Saving (70%):- 56
DPM:- 0.5W
Power off:- 0.5W
Max.:- 120W
Typ.:- 80W

SOUND

Speaker (Built-in):- Yes(10W X 2)

CERTIFICATION

Safety:- CB / NRTL
EMC:- FCC Class "B" / CE / KC
ERP / Energy Star:- Yes(NewErP)/Yes
ePEAT(US only):-Yes

SOFTWARE COMPATIBILITY

SuperSign CMS:- Yes
SuperSign Control+:- Yes
SuperSign WB:- Yes
SuperSign Cloud:- Yes
Promota:- Yes (Not available for EU/CIS)
Mobile CMS:- Yes
Connected Care:- Yes

LANGUAGE

OSD:- English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Türkçe, Arabic

ACCESSORY

Basic:- Remote Controller(include battery 2ea), Power Cord, QSG, Regulation Book, Phone to RS232C Gender, USB-C Cable, Cable Holder(2EA), AC Cord Holder (1EA)
Optional:- Slim Wall Mount (WB21LMA/B),
Wall Mount (LSW240A/B)
Wall Mount Adapter (AM-B220S)

SPECIAL FEATURE

Tilt (Face down):- Yes(Max 30˚ degree, 40℃ temperature)
IP Rating:- IP5X
Conformal Coating (Power Board):- Yes
