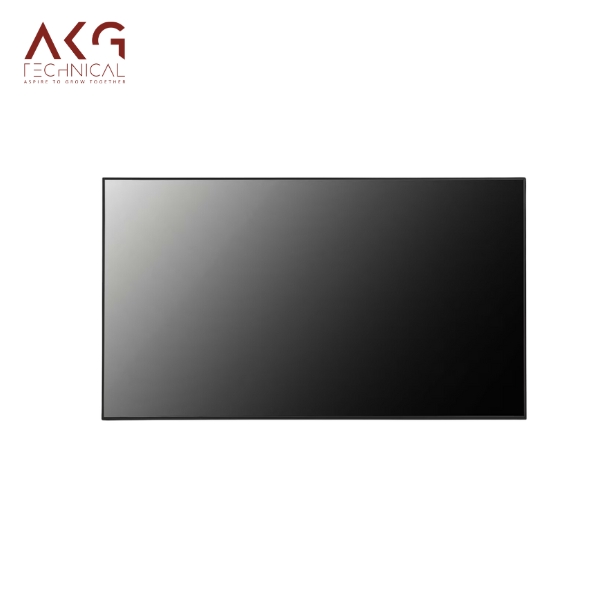

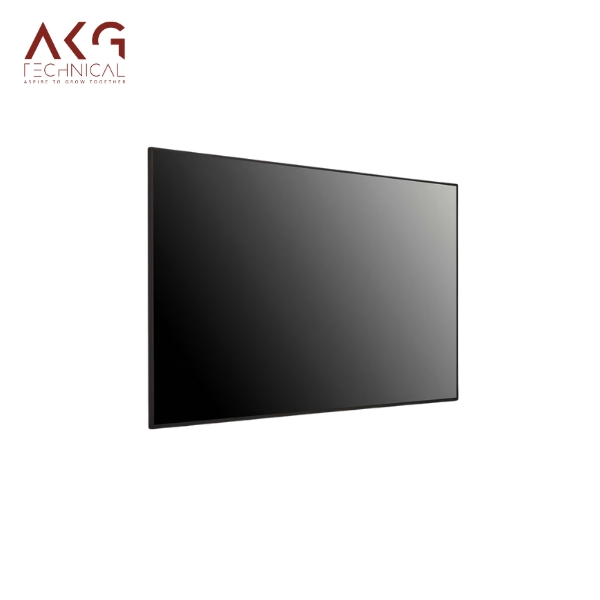

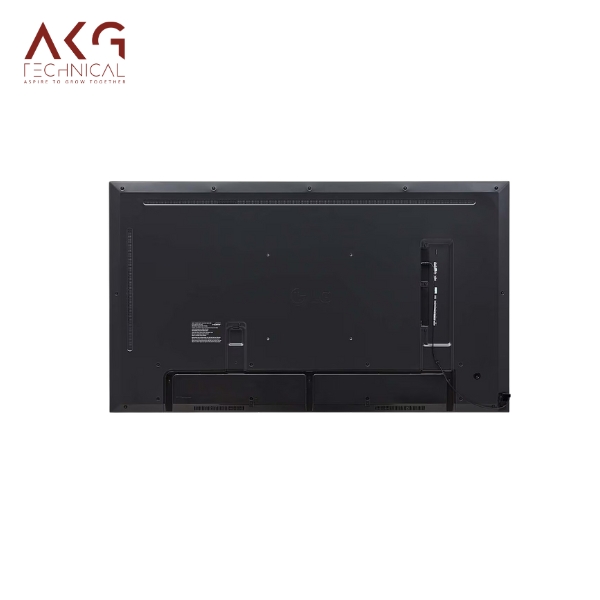

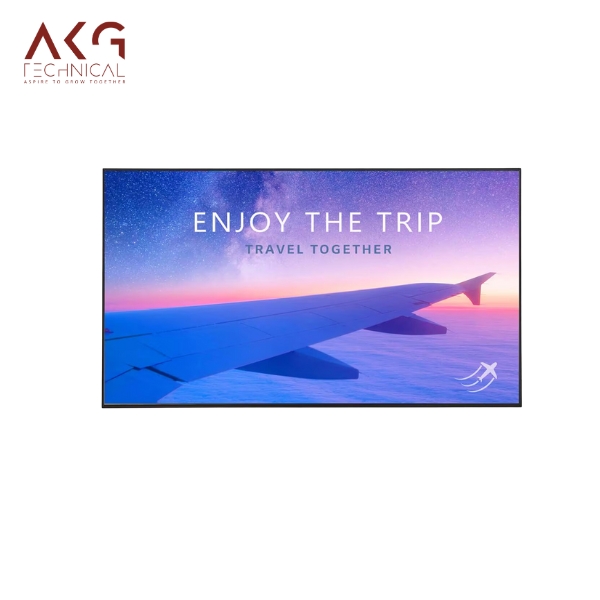

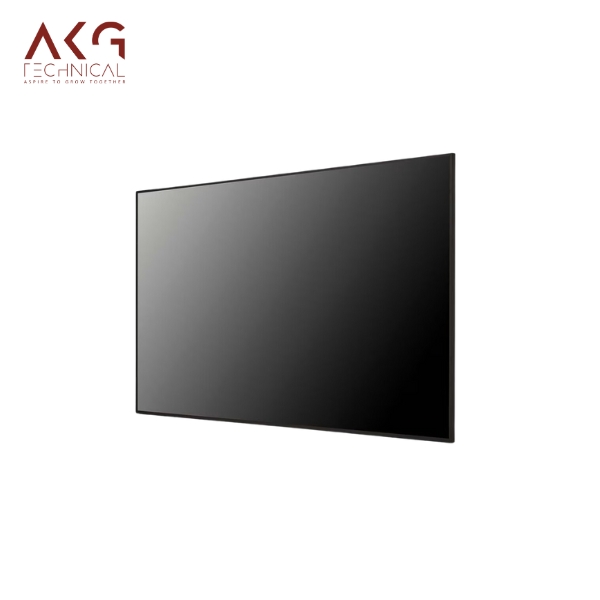

LG 65″ UHD Signage Display, Model No. 65UH7N-E

₹105000.00

The LG UH7N-E digital signage offers excellent visual performance as it has a resolution that is four times higher than FHD which gives the viewers a breathtaking experience.

About this item

  • Ultra HD Resolution:- Produces visuals that are 4 times sharper than FHD, providing an interactive experience.
  • webOS Platform:- Integrated powerful SoC which allows multitasking without external media players.
  • Enhanced Durability:- The difference in altitude is compensated with conformal coating to ease the effect of salt, dust and humidity.
  • Space Saver:- Short installation interfers such as thin bezels, concealed power entries and less clearance.*
  • Robust Security:- Proprietary LG Enhanced Kernel Protection (EKP) prevents loss of critical data due to unauthorized activity.
  • Eco-Friendly Materials:- Use of recycled resins in back covers facilitates environmentally sound practices.*
  • Super Sign Solutions:- User friendly, easy and organized content management system for unique and aesthetic displays of signs.
  • Reduced Carbon Footprint:– Built with a reduced global warming potential.

The LG UH7N-E digital signage offers excellent visual performance as it has a resolution that is four times higher than FHD which gives the viewers a breathtaking experience. The webOS platform comes with a powerful SoC, which makes it easier to use since an external media player is not needed to switch between tasks. The UH7N-E digital signage was constructed for business settings and is suitable for this environment. This is thanks to a conformal coating on the power board that prevents damage from salt, dust, iron powder, and moisture. Such protection ensures long term reliability. Thin bezels, simple cable management along with concealed power inlets also allow the display to be installed close to a wall with only 13mm toward the use of slim brackets. LG’s Enhanced Kernel Protection (EKP) technology makes this model stand out because it helps in guarding sensitive information against cyber threats.

PANEL

Screen Size (Inch):- 65
Panel Technology:- IPS
Back Light Type:- Edge
Aspect Ratio:- 16 : 9
Native Resolution:- 3840 x 2160 (UHD)
Refresh Rate:- 60Hz
Brightness:- 700nit (Typ.)
Dynamic CR:- 1,000,000:1
Color Gamut:- BT709 95%
Viewing Angle (H x V):- 178 X 178
Color Depth (Number of Colors):- 10bit(D), 1.07Billion colors
Response Time:- 8ms (G to G)
Surface Treatment (Haze):- 28%
Life time:- 50,000Hrs (Min.)
Operation Hours (Hours/Day):- 24/7
Portait / Landscape:- Yes / Yes
CONNECTIVITY

HDMI In:- Yes(2), 3840×2160@60Hz, HDCP 2.2/1.4
DP In:- Yes (1), 3840×2160@60Hz, HDCP2.2/1.3
RS232C In:- Yes (1)
RJ45(LAN) In:- Yes (1)
IR In:- Yes (1)
USB In:- USB2.0 Type A(1), USB2.0 Type C ((1), without PD funtion)
DP Out:- Yes (1), 3840×2160@60Hz, Input : HDMI1/2/DP/USB-C
Audio Out:- Yes (1)
RS232C Out:- Yes (1), 4pin Phone-jack
Daisy Chain:- Yes (Input HDMI, DP, USB C / Output DP)
MECHANICAL SPECIFICATION

Bezel Color:- Black
Bezel Width:- T/R/L: 8.9 mm, B: 12.9 mm
Weight (Head):- 24.2 kg
Packed Weight:- 30.4 kg
Monitor Dimensions (W x H x D):- 1450.3 x 830.3 x 29.7 mm (Without IR)
VESA Standard Mount Interface:- 300 x 300
Carton Dimensions (W x H x D):- 1600.0 x 970.0 x 172.0 mm
FEATURE - HARDWARE

Internal Memory (eMMC):- 16GB
Wi-Fi/BT (Built-in):- Yes
Temperature Sensor:- Yes
Auto Brightness Sensor:- Yes ( External IR)
Acceleration(Gyro) Sensor:- Yes
Local Key Operation:- Yes
FEATURE - SOFTWARE

OS Ver. (webOS):- webOS6.0
Local Contents Scheduling:- Yes
Group Manager:- Yes
USB Plug & Play:- Yes
Fail Over:- Yes
Booting Logo Image:- Yes
No Signal Image:- Yes
RS232C Sync:- Yes
Local Network Sync:- Yes
PIP:- Yes
PBP:- Yes(4)
Screen Share:- Yes
Video Tag:- Yes(4)
Play Via URL:- Yes
Screen Rotation:- Yes
External Input Rotation:- Yes
Gapless Playback:- Yes
Tile Mode Setting:- Yes(Max. 15×15)
Setting Data Cloning:- Yes
SNMP:- Yes
ISM Method:- Yes
Auto Set ID:- Yes
Status Mailing:- Yes
Control Manager:- Yes
Cisco Certification:- (TBD)
Crestron Connected:- Yes
Smart Energy Saving:- Yes
PM mode:- Yes
Wake on LAN:- Yes
Network Ready:- Yes
BEACON:- Yes
HDMI-CEC:- Yes
SI Server Setting:- Yes
webRTC:- Yes
Pro:Idiom:- Yes
ENVIRONMENT CONDITIONS

Operation Temperature:- 0 °C to 40 °C
Operation Humidity:- 10 % to 80 %
POWER

Power Supply:- AC 100-240V~, 50/60Hz
Power Type:- Built-In Power
POWER CONSUMPTION

BTU (British Thermal Unit):- 495 BTU/Hr(Typ.), 682 BTU/Hr(Max)
Smart Energy Saving (70%):- 101.5
DPM:- 0.5W
Power off:- 0.5W
Max.:- 200W
Typ.:- 145W
SOUND

Speaker (Built-in):- Yes (10W X 2)
CERTIFICATION

Safety:- CB / NRTL
EMC:- FCC Class "B" / CE / KC
ERP / Energy Star:- Yes (NewErP) / Yes
ePEAT(US only):- Yes
SOFTWARE COMPATIBILITY

SuperSign CMS:- Yes
SuperSign Control+:- Yes
SuperSign WB:- Yes
SuperSign Cloud:- Yes
Mobile CMS:- Yes
Connected Care:- Yes
LANGUAGE

OSD:- English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Turkish→Türkiye, Arabic
ACCESSORY

Basic:- Remote Controller(include battery 2ea), Power Cord, QSG, Regulation Book, Phone to RS232C Gender, USB-C Cable, Cable Holder(2EA), AC Cord Holder (1EA)
Optional:- Slim Wall Mount (WB21LMA/B),
Wall Mount (OLW480A/B)
Wall Mount Adapter (AM-B330S)
SPECIAL FEATURE

Tilt (Face down):- Yes(Max 30˚ degree, 40℃ temperature)
IP Rating:- IP5X
Conformal Coating (Power Board):- Yes
