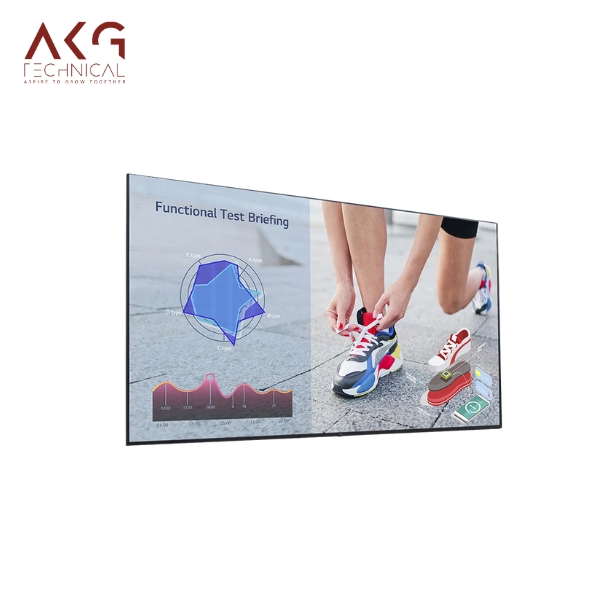

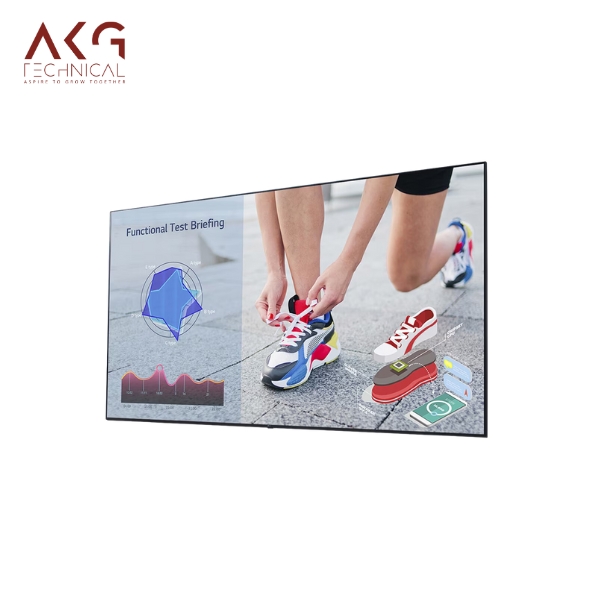

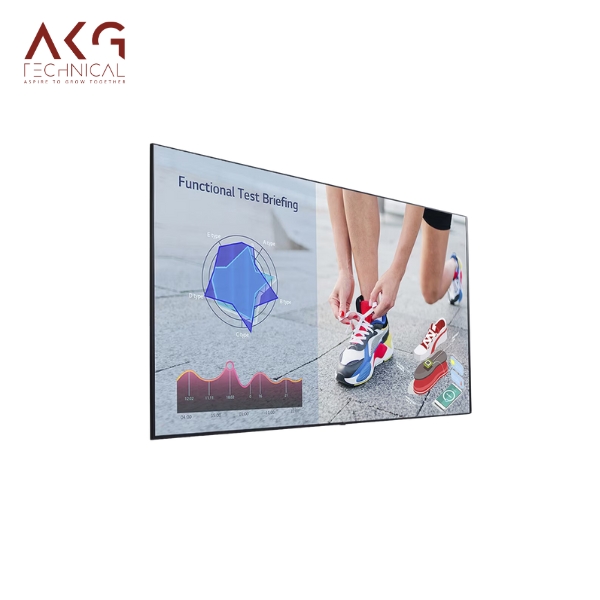

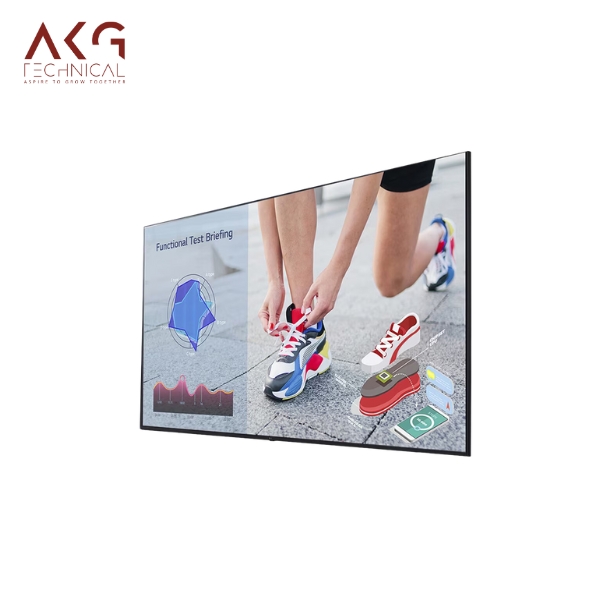

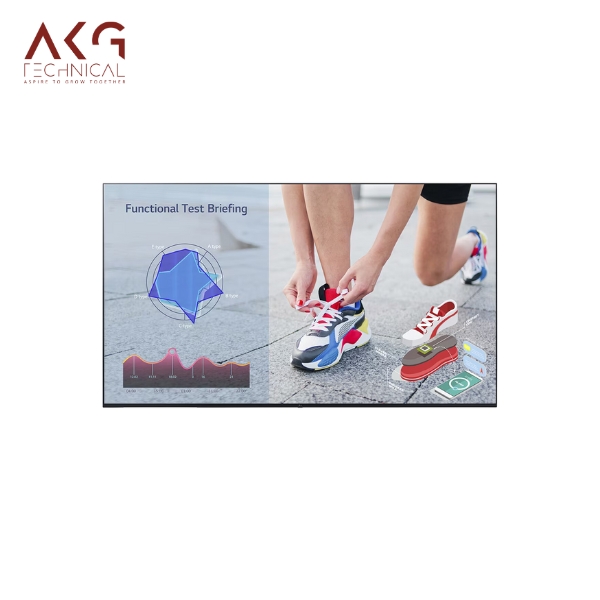

LG 86″ webOS UHD Signage, Model No. 86UL3J-B
₹545000.00
LG webOS UHD Signage creates a combination of cutting-edge technology and features which can be utilized across a number of industries.
About this item
- Ultra HD Resolution:- Provides splendid colors and rich details enabling the best picture quality possible.
- Slim Design:- The compact form factor and thin borders saves space and allows easier mounting.
- Enhanced Performance:- Smooth interaction through the upgraded SoC and web engine is assured by LG webOS 6.0.
- Sensor Connectivity:- Allows GPIO, NFC/RFID, and temperature sensors by USB pluggable for custom-made solutions.
- Wireless Screen Sharing:- LG One:Quick Share offers smooth screen sharing and meeting dynamics with a USB dongle and integrated Wifi.
- Web-Based Monitoring:- Added ease through the easy remote control and monitoring features.
- AV System Compatibility:- Professional AV systems can connect with ease thanks to Crestron Connected®.
LG webOS UHD Signage creates a combination of cutting-edge technology and features which can be utilized across a number of industries. With an outstanding contrast ratio due to its IPS panel technology, rich colors and intricacies are further complemented with its ultra high definition resolution. Its flush sleek design with thin bezels and less thickness also saves space while making installation quicker and easier. In addition, the UL3J series is also powered with LG webOS version 6.0 with enhanced SoC and web engine which combines the multitasking performance and lightweight features. The LG webOS has expanded functionality and uses a smart signage platform that can quickly integrate with peripheral devices through a USB interface including GPIO, NFC/RFID and thermal sensors, offering cutting-edge solutions.
| PANEL | Screen Size (Inch):- 86 Panel Technology:- IPS Back Light Type:- Direct Aspect Ratio:- 16:9 Native Resolution:- 3840 x 2160 (UHD) Refresh Rate:- 120Hz Brightness:- 330nit (Typ.) Dynamic CR:- 1,000,000:1 Color Gamut:- DCI 80% Viewing Angle (H x V):- 178º x 178º Color Depth (Number of Colors):- 1.07 Billion colors Response Time:- 5ms (G to G) Surface Treatment (Haze):- Haze 3% Operation Hours (Hours/Day):- 16/7 Portait / Landscape:- NO / YES Transparency:- N/A QWP (Quarter Wave Plate):- N/A |
|---|---|
| CONNECTIVITY | HDMI In:- YES (3ea) HDMI In (HDCP Ver.):- 2.2/1.4 DP In:- NO DVI-D In:- NO RGB In:- NO Audio In:- NO RS232C In:- YES RJ45(LAN) In:- YES (1ea) IR In:- NO USB In:- USB2.0 Type A (2ea) HDMI Out:- NO DP Out:- NO Audio Out:- YES Touch USB:- NO External Speaker Out:- NO RS232C Out:- YES RJ45(LAN) Out:- NO IR Out:- NO Daisy Chain:- NO |
| MECHANICAL SPECIFICATION | Bezel Color:- Ashed Blue Bezel Width:- Off : 6.9/6.9/6.9/18.4mm On : 15.9/15.9/15.9/19.9mm Weight (Head):- 45.2Kg Packed Weight:- 57.7Kg Monitor Dimensions (W x H x D):- 1927 x 1104 x 59.9mm Monitor Dimension with Stand (W x H x D):- N/A Handle:- NO VESA Standard Mount Interface:- 600 x 400 mm Carton Dimensions (W x H x D):- 2115 x 1215 x 228mm Weight (Head+Stand):- N/A |
| FEATURE - HARDWARE | Internal Memory (eMMC):- 16GB Wi-Fi/BT (Built-in):- YES Temperature Sensor:- YES Auto Brightness Sensor:- YES Pixel Sensor:- NO Proximity Sensor:- NO Current Sensor:- NO BLU Sensor:- NO Humidity Sensor:- NO Acceleration(Gyro) Sensor:- NO Power Indicator:- NO Local Key Operation:- YES FAN (Built-in):- NO |
| FEATURE - SOFTWARE | OS Ver. (webOS):- webOS 6.0 Local Contents Scheduling:- YES Group Manager:- YES USB Plug & Play:- YES Fail Over:- YES Booting Logo Image:- YES No Signal Image:- YES RS232C Sync:- YES Local Network Sync:- YES Backlight Sync:- NO PIP:- NO PBP:- NO Screen Share:- YES Video Tag:- YES (4 Video Tag) Play Via URL:- YES Screen Rotation:- YES External Input Rotation:- YES Gapless Playback:- YES Tile Mode Setting:- YES Setting Data Cloning:- YES SNMP:- YES ISM Method:- YES Auto Set ID:- YES Status Mailing:- YES Control Manager:- YES Cisco Certification:- YES Crestron Connected:- YES Smart Energy Saving:- YES / NO PM mode:- YES Wake on LAN:- YES Network Ready:- YES BEACON:- YES HDMI-CEC:- YES SI Server Setting:- YES webRTC:- YES Pro:Idiom:- YES Brightness Compensation:- NO W/B Setting by Grey scale:- NO Scan Inversion:- NO |
| ENVIRONMENT CONDITIONS | Operation Temperature:- 0 °C to 40 °C (Portrait Scene : 0 °C to 30 °C) Operation Humidity:- 10 % to 80 % |
| POWER | Power Supply:- AC 100-240V~, 50/60Hz Power Type:- Built-in Power |
| POWER CONSUMPTION | BTU (British Thermal Unit):- 751 BTU/Hr(Typ.), 1024 BTU/Hr(Max.) Smart Energy Saving (70%):- 154 W DPM:- 0.5W Power off:- 0.5W Max.:- 300W Typ.:- 220W |
| SOUND | Speaker (Built-in):- YES (10W x 2) |
| CERTIFICATION | Safety:- CB / NRTL EMC:- FCC Class "A" / CE ERP / Energy Star:- YES / NO ePEAT(US only):- NO |
| OPS COMPATIBILITY | OPS Type compatible:- NO OPS Power Built-in:- NO |
| SOFTWARE COMPATIBILITY | SuperSign CMS:- YES SuperSign Control+:- YES SuperSign WB:- YES SuperSign Cloud:- NO Promota:- YES (Not available for EU/CIS) Mobile CMS:- NO Connected Care:- YES |
| LANGUAGE | OSD:- English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Türkçe, Arabic, polski |
| ACCESSORY | Basic:- Remote Controller(include battery 2ea), Power Cord, Regulation Book, Phone to D-Sub9 Gender, Cable Holder Optional:- NO |
| SPECIAL FEATURE | Overlay Touch Compatibility:- N/A Smart Calibration:- N/A Tilt (Face up):- N/A Tilt (Face down):- N/A IP Rating:- N/A Conformal Coating (Power Board):- YES Power Protection:- N/A Direct Sunlight:- N/A |
